Vecoplan presents a cleaning process for plastics recycling

New process

The Cleanikum demonstrates the systematic use of cleaning and separation technologies that help to cut back on the use of energy and water.  Post-consumer waste can be cleaned in a cold or hot process and with or without lye – depending on the degree of contamination and the quality requirements for the recyclate. The combined demonstration and testing facility is able to handle polyolefins in the form of plastic film or used bottles.

“We rely on mechanical dry pre-cleaning, which means there is no conventional pre-wash,” says Schmidt. “This lowers our use of fresh water, and we can significantly reduce the quantity of waste water. The facility thus demonstrates processes that are economical in the use of water, an important resource.”

High cleaning quality

The required degree of cleanliness can be customized according to the user’s requirements. In addition to wet or dry mechanical cleaning, the Cleanikum can demonstrate temperature-controlled intensive heating using a sodium hydroxide (NaOH) solution, for example when the regranulate is needed for the consumer goods or cosmetics industry. This is an effective means of dissolving greasy and oily impurities and of removing adhesives from labels.

Efficient water treatment

Vecoplan prepares the cleaning lye in the Cleanikum separately from the process water. Instead of using the lye or process water until it is saturated with contaminants and then cleaning it, the waste water is fed via collection lines at every point in the facility to a specially designed water treatment system where it is cleaned and returned to each component. “This reduces our use of fresh water and lye while also improving the cleaning quality,” says Schmidt. “It is our contribution to sustainable recycling.”

Processing of plastic film

In post-shredding, a wet granulator shreds the cleaned plastic film to the particle required for drying and extruding. A combined friction separator and dewatering screw then dries the material mechanically to a residual moisture of five to six percent. The use of mechanical instead of thermal drying demonstrates how it is possible to improve the environmental footprint of plastics recycling.

Processing of hard plastics

After dry and wet cleaning, thin-walled hard plastics are sent directly to a turbo dryer, which ideally can reduce the residual moisture to only two percent. The processed plastic flakes are then ready for subsequent sorting or extruding.

“This process gives our customers a highly reliable means of processing plastics,” explains Martina Schmidt. “Closed-loop recycling helps them to achieve better-quality recyclate and reduces the burden on the environment.”

01-vecoplan-messe-k-fb-reinigen-03

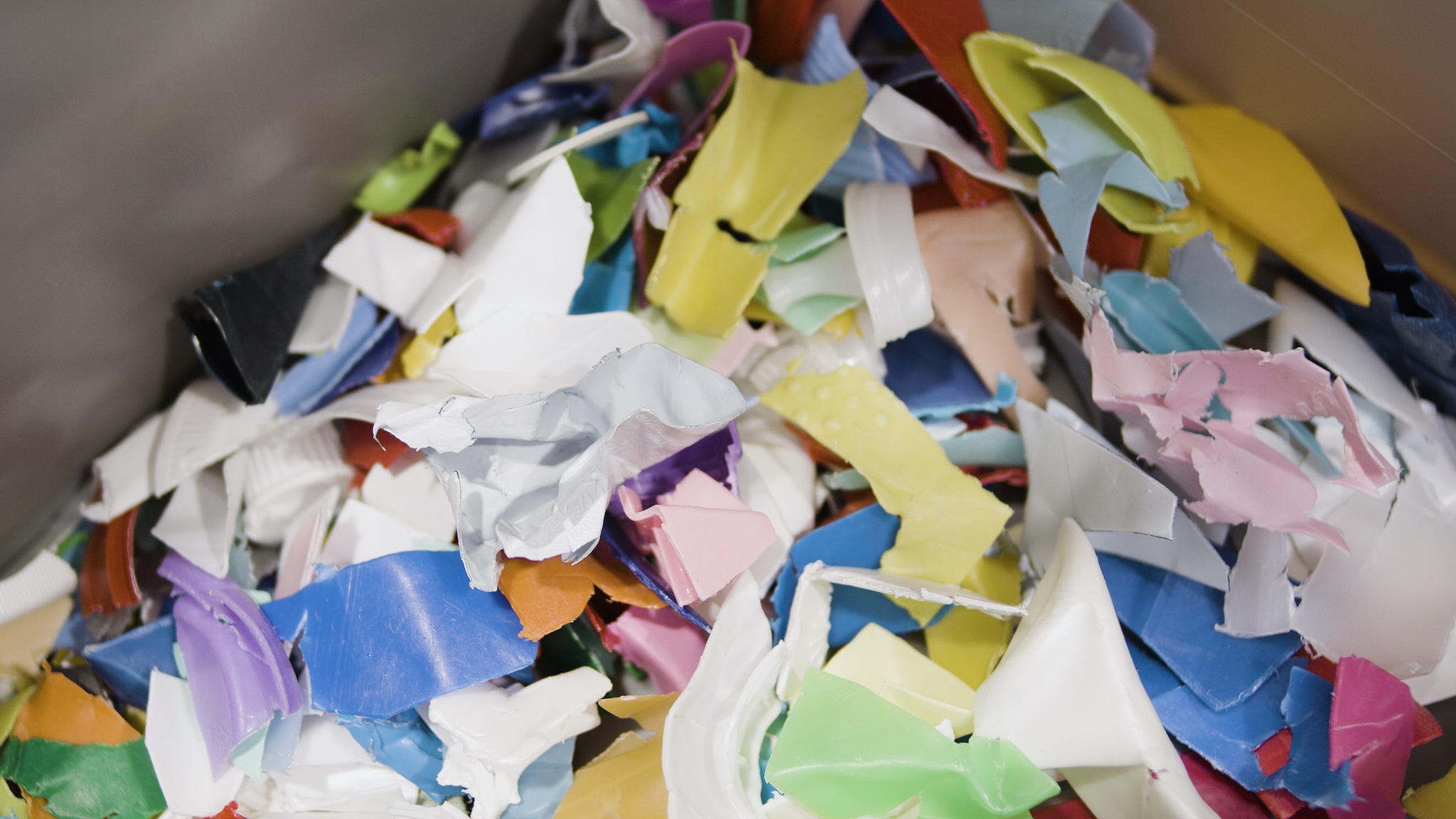

After cleaning, the material is ready for downstream processes.
