Norilux DC

Norilux® DC is a formable, abrasion and chemically resistant Dual Cure screen printing lacquer. Norilux® DC can be used as protective lacquer or hard coat on PC, PMMA, ABS and PP films. Norilux® DC is ideally suited for first surface coating/protection of products manufactured in IMD/FIM technology. The glossy version of the dual cure lacquer can be printed on textured film surfaces to produce abrasion resistant and transparent display windows. The matt version of Norilux® DC can be printed on uncured transparent hard coat films such as Makrofol® HF 312 to create matt and high gloss effects in one item. Besides the high glossy Norilux® DC lacquer, various satin gloss, textured and matt grades as well as pigmented and UV stabilized versions are available.Tactile surface structures e.g. brush effects and 3D patterns can be printed with the highly resistant lacquer.

Norilux® DC dries by evaporation of the solvents in jet dryers. Films decorated with Norilux® DC can be 3D formed after box oven drying e.g. by high pressure forming or thermo forming. Afterwards, the formed films must be UV cured. The cured lacquer layer shows excellent resistances to abrasion, chemicals and cleaning agents and passes various creme tests of the automobile industry.  In automotive interior, center stacks, touch panels and decorative trims are first surface protected with Norilux® DC. Even mobile phone covers and sanitary panels are overprinted with the highly resistant lacquer. Second surface decoration is printed with the IMD/FIM ink system Noriphan HTR N.

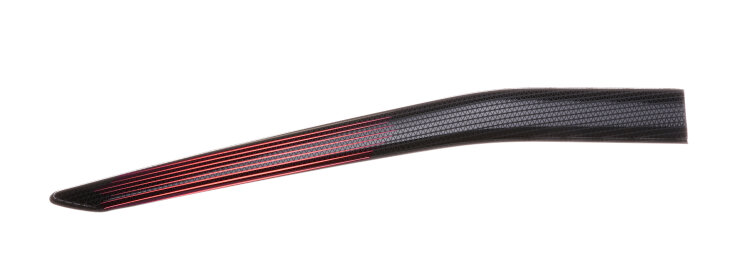

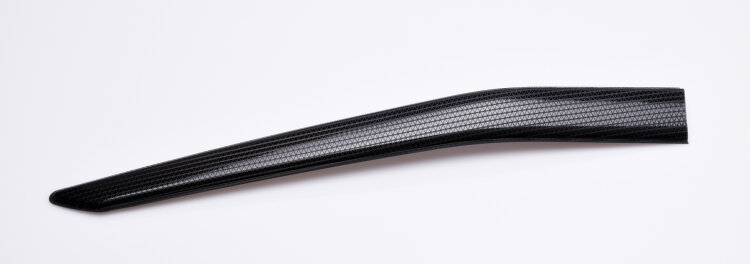

Decorative tactile effect, printed with Norilux® DC on a PC film. Second surface decoration including secret-til-lit effect was printed with the IMD/FIM ink system Noriphan HTR N.

NoriCure® HC-1

NoriCure® HC-1 is an UV-curing screen printing lacquer showing excellent scratch and abrasion resistance. The cured surface of the lacquer resists even strong wipes with steel wool. The high gloss UV-lacquer is designed for printing on PC films, coated PET films (e.g. Autotype Autoflex EPG 180, Autotex V200), and various rigid PVC films and for overprinting of printed products.  The lacquer is used to overprint and protect displays, lenses and panels. The cured lacquer shows excellent resistances to chemicals and cleaning agents. Besides the high gloss NoriCure HC-1, matt (NoriCure® HC-1-001) and textured (NoriCure® HC-1-002) as well as UV-stabilized (NoriCure® HC-1-003) versions are available.

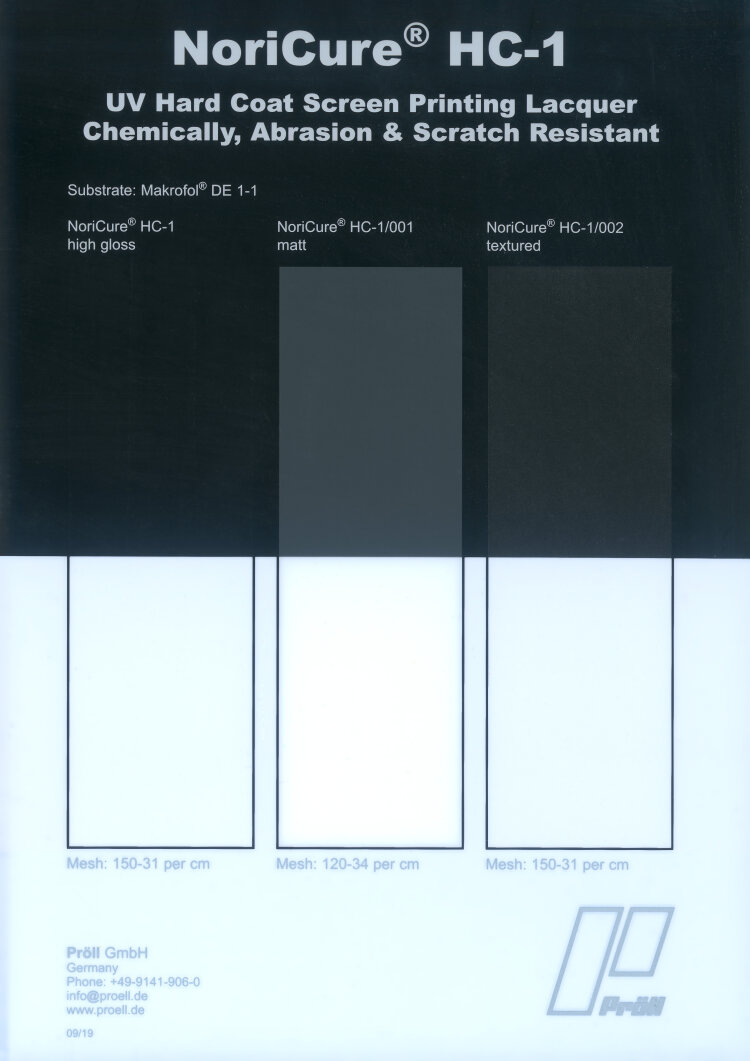

NoriCure® HC-1: Color Information
