Tomra Recycling’s technology takes center stage in the UAE’s first automated sorting plant

Tomra Recycling’s technology…

Tomra Recycling Sorting’s Autosort sensor-based sorting technology is helping to recover high-quality, high-purity value recyclates at Farz, the first automated MRF in the United Arab Emirates (UAE). The 1,200 tons per day plant has two separate lines – one for municipal solid waste (MSW) and the other for commercial and industrial (C&I) waste. Six Autosort units are spread across the lines and used to identify and separate plastic materials from the infeed waste streams, and to sort high-density polyethylene (HDPE) and polyethylene terephthalate (PET) from mixed 3D plastics.

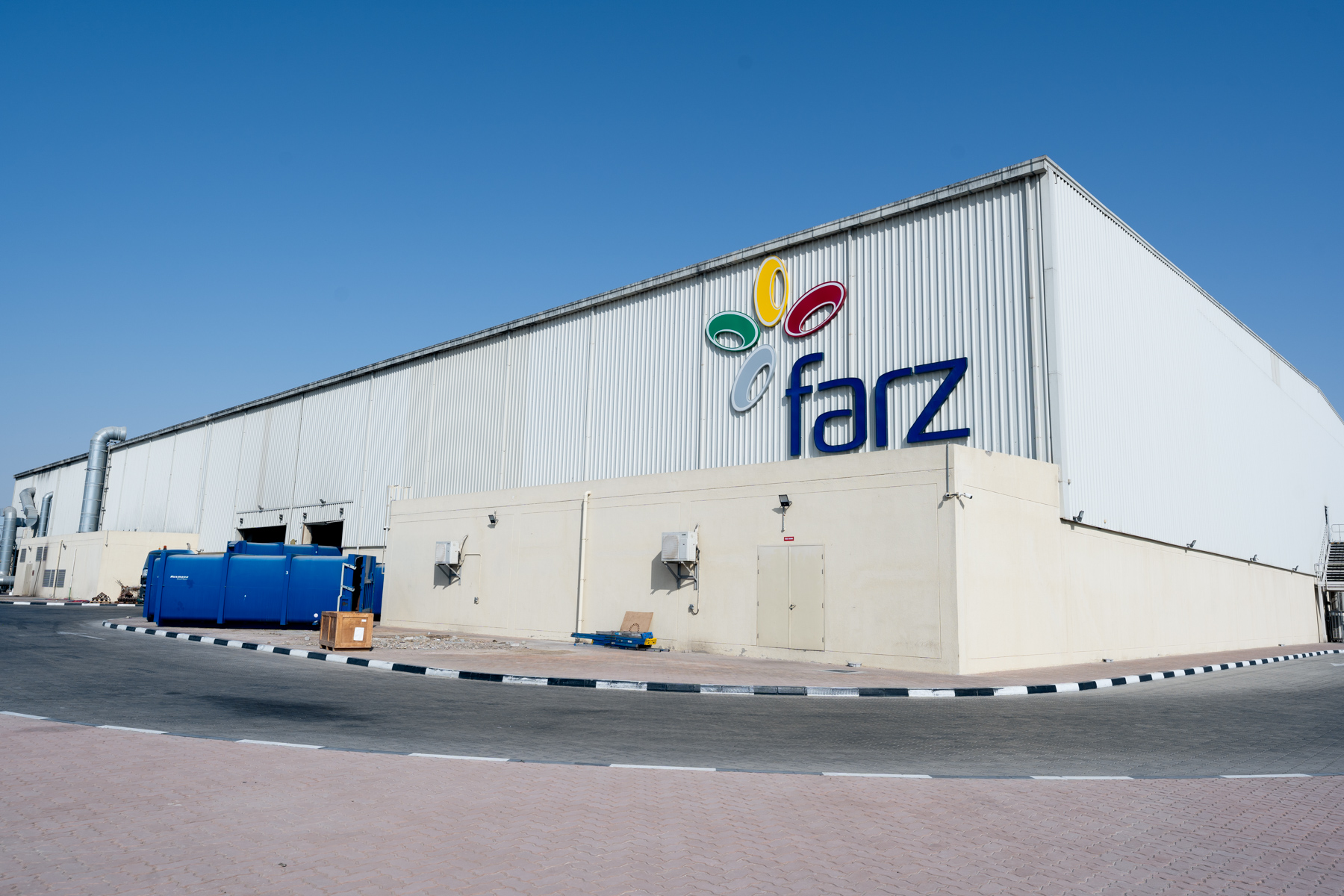

Farz is owned and operated by Imdaad, the leading integrated facility management company in the Middle East. The plant is built on a 45,322 m2 plot in Dubai’s National Industries Park, a 21 km2 area of specially designated land in the heart of Dubai’s new industrial district. Imdaad is responsible for the collection of C&I waste from the Jebel Ali Free Zone (JAFZA), a free economic zone located in the Jebel Ali area at the far western end of Dubai in the UAE.

Imdaad’s mission for the Farz plant is closely aligned with Dubai’s target to hit zero waste to landfill by 2030, and the plant is widely recognized as having the most efficient recovery rate of any MRF in the UAE.

Using the very latest in automated technologies, the state-of-the-art MRF is capable of handling 1,200 tons per day of C&I waste and MSW. An automated system is used to maximize the recovery of the target fractions which are HDPE, PET, aluminum, ferrous metals, OCC, wood and PE bags.


The process

Infeed waste arrives by truck to FARZ’s reception area where, following a pre-sorting stage, the MSW and C&I waste are separated into two lines; one for MSW and the other for C&I waste.

Shredders on both lines break down the material and trommels separate the infeed material into different fractions based on . On both lines, the valuable fractions (80 – 300mm) are passed onto the next stage of magnetic separation and the <80mm organic waste and inert fractions smaller are diverted directly to the landfill. Any >300mm material is returned to the feeding area to go through the shredder process again. Magnets and eddy current separators sort the metals into ferrous and non-ferrous metals, removing them in preparation for the next sorting stage.

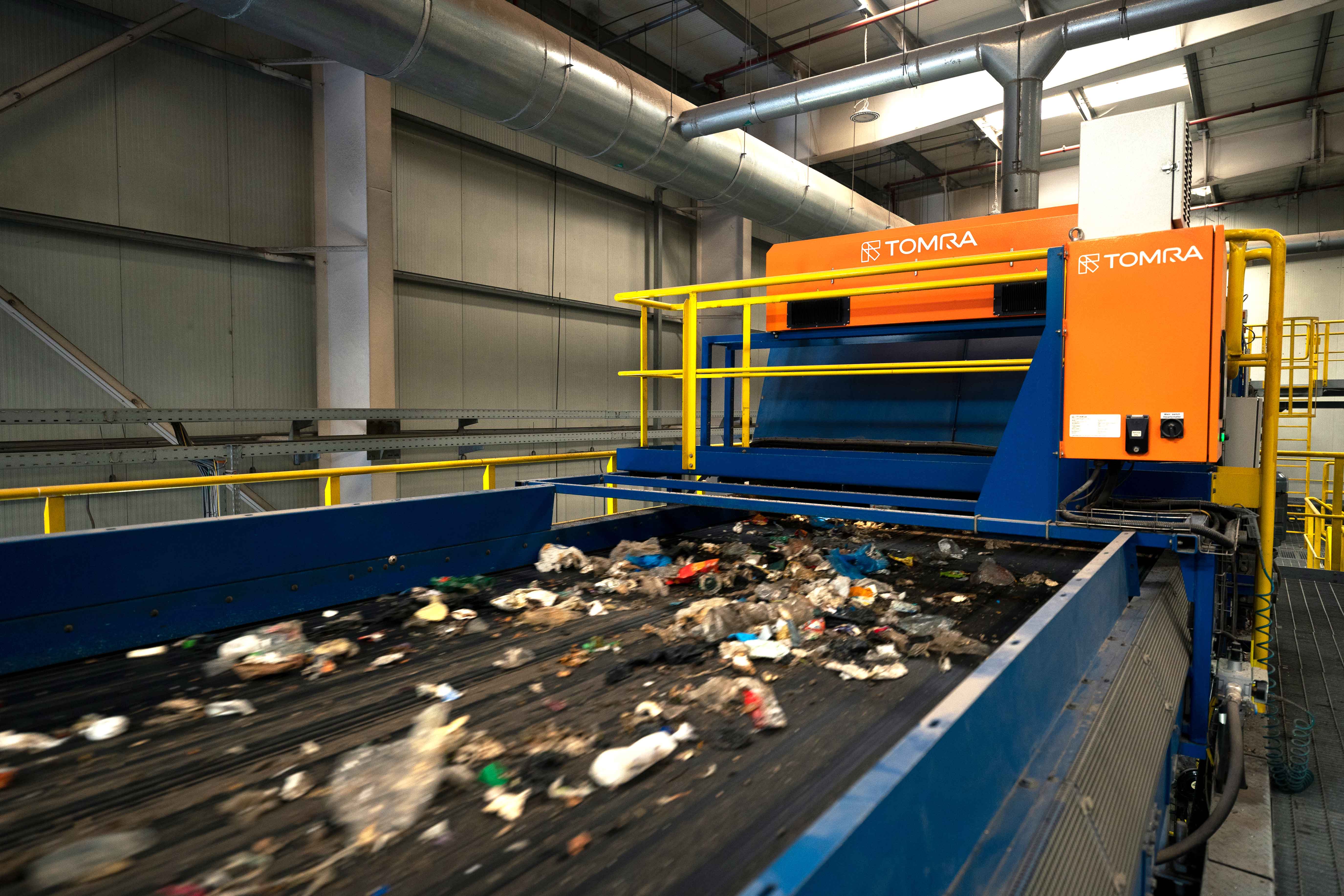

Once the metals have been recovered from both the MSW and C&I lines, the first Tomra Autosort units in each line separate a mixed plastics fraction for further processing into three target fractions: 3D (bottles and plastic containers), 2D (film, cardboard, foil and textiles) and fines. The remaining material passes through a second Autosort unit on each line to separate a mixed paper/cardboard fraction. The residual waste is transferred to a Refuse Derived Fuel (RDF) bunker prior to being sold for use in energy from waste (EFW) plants. The final two Autosort units - one on each line - separate out HDPE and PET from the 3D fraction before the material undergoes a final manual quality control check.

This phased process enables Farz to produce high-quality, high-purity end fractions of HDPE, PET, aluminum, ferrous metals, OCC, wood, PE bags and RDF. These fractions are baled and sold on to recyclers within the UAE and exported worldwide.
