Wittmann net5 system: the conveying system with that certain "touch"

All the settings that define the suction process and the conveying times (and also the 2-component valve settings), are stored directly in the conveying unit, and not on the remote control. This makes an important contribution to process security, because every single material loader will function according to its own special settings, even without remote control.

The menu navigation of the control is designed very clearly and comprehensively. Images on the control’s screen clearly display the device type that is being adjusted in the moment. The respective written output and the units’ ambiLED color status displays define the unit that is under current use.

A net5 system can be enlarged with an additional material loader or a dryer very easily. The new device has to be given an address and afterwards it can be simply connected via a cable to any other device of the existing system. The system recognizes this additional device automatically – without any configuration or programming efforts. After having set its parameters, the new device can go on line

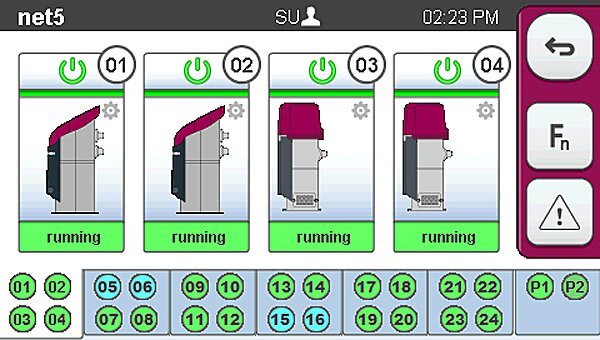

Screen with loaders

TEACHBOX basic screen, material loaders display

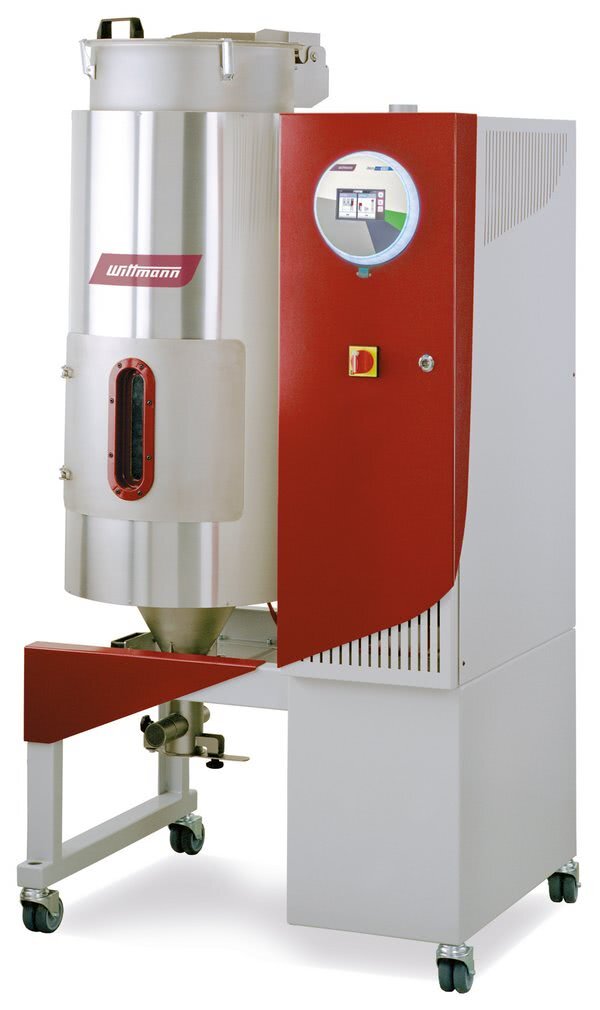

ATON plus dryer as the central control unit

The Wittmann ATON plus segmented wheel dryer also uses the net5 system. Thus, the dryer’s control can be used as the central control unit, not only for the dryer itself, but also for the system’s material loaders. The dryer’s parameters are visible and editable via the dryer’s display, as well as via the TEACHBOX basic. Many customers prefer to have ready access to process information on frequently dried materials. Here, the Wittmann ATON plus stands out, because it can locally store the settings for eight different materials, and these settings can be easily recalled when necessary.



Source: Wittmann Group
