Proell at K 2019

Proell at K 2019

Proell's core business lies in the development of custom-made chemical products for coating/decorating plastics and other materials, as well as innovative ink systems for IMD/FIM technology, and screen and pad printing inks.

Noriphan HTR N 990 NC - non-conductive black for IMD/FIM technology

Noriphan HTR N is a proven, formable, backmoldable and solvent-based one-component screen printing ink for film insert molding technology.

Due to the development of the new opaque black color shade Noriphan HTR N 990 NC, a carbon-free, non-conductive black is available for printed electronic applications now.

pic-1-proell-tactotek-functional-imd-panel-on-2

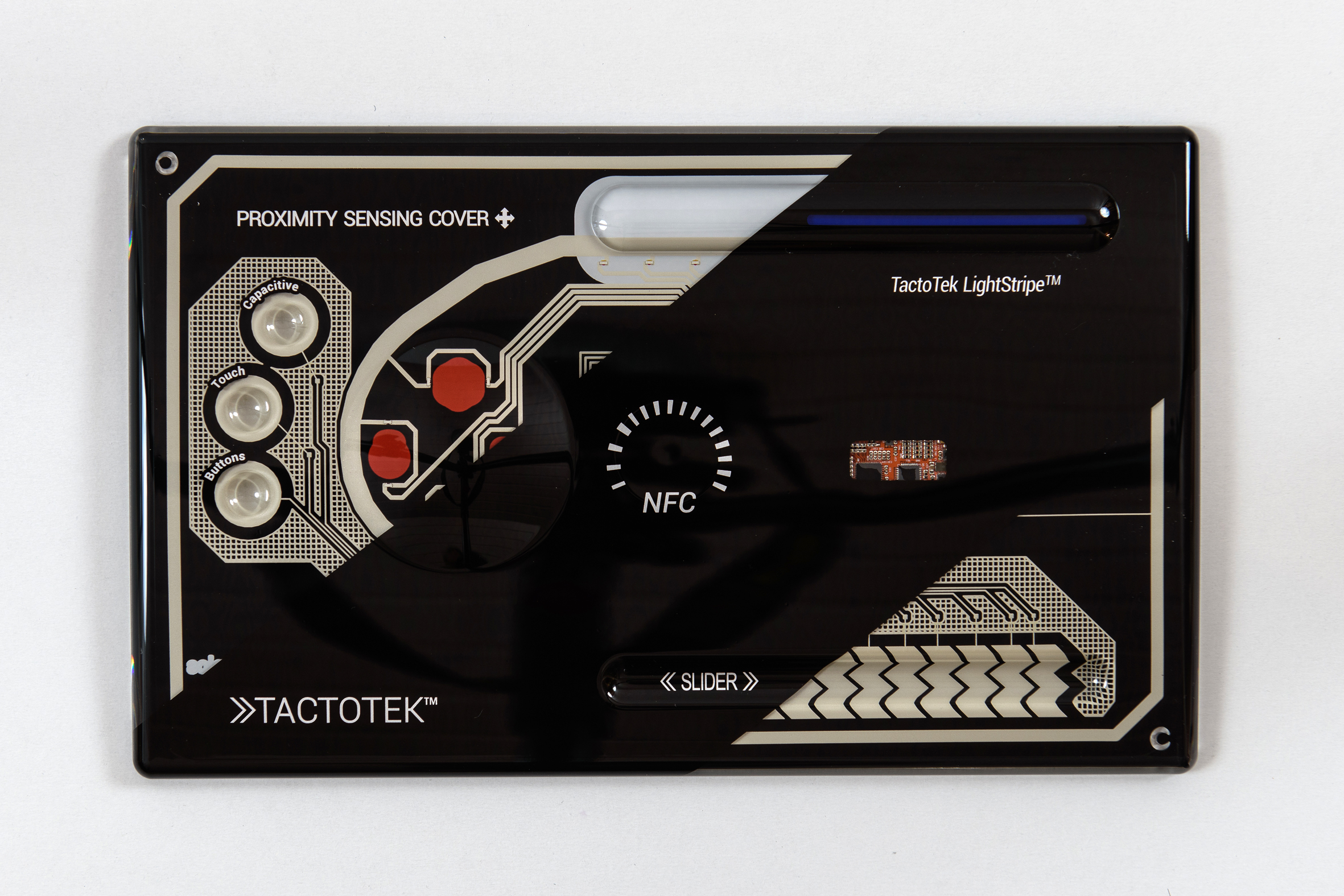

Tactotek IMSE-3D demo panels, potential application for non-conductive inks


The color shade can be used for decorative prints but is mainly used for plane multi-layer printing or backing of metallic and polymer conductive pastes. Carbon-based pigments, so called carbon blacks, normally used for black color shades, are electrically conductive and can interfere with the functional structures. The Noriphan HTR N 990 NC color shade has been formulated and optimized regarding the interlayer adhesion and shows good adhesion in compound values in the final film/ink/injection material composition.

NoriCure HC-1

NoriCure HC-1is a UV-curing screen printing lacquer showing excellent scratch and abrasion resistance. The cured surface of the lacquer resists even strong wipes with steel wool.

The high gloss UV-lacquer is designed for printing on PC films, coated PET films (e.g. Autotype Autoflex EPG 180, Autotex V200), and various rigid PVC films and for overprinting of printed products.

pic-2-noricure-hc-1-scratch-resistant-uv-protective-lacquer

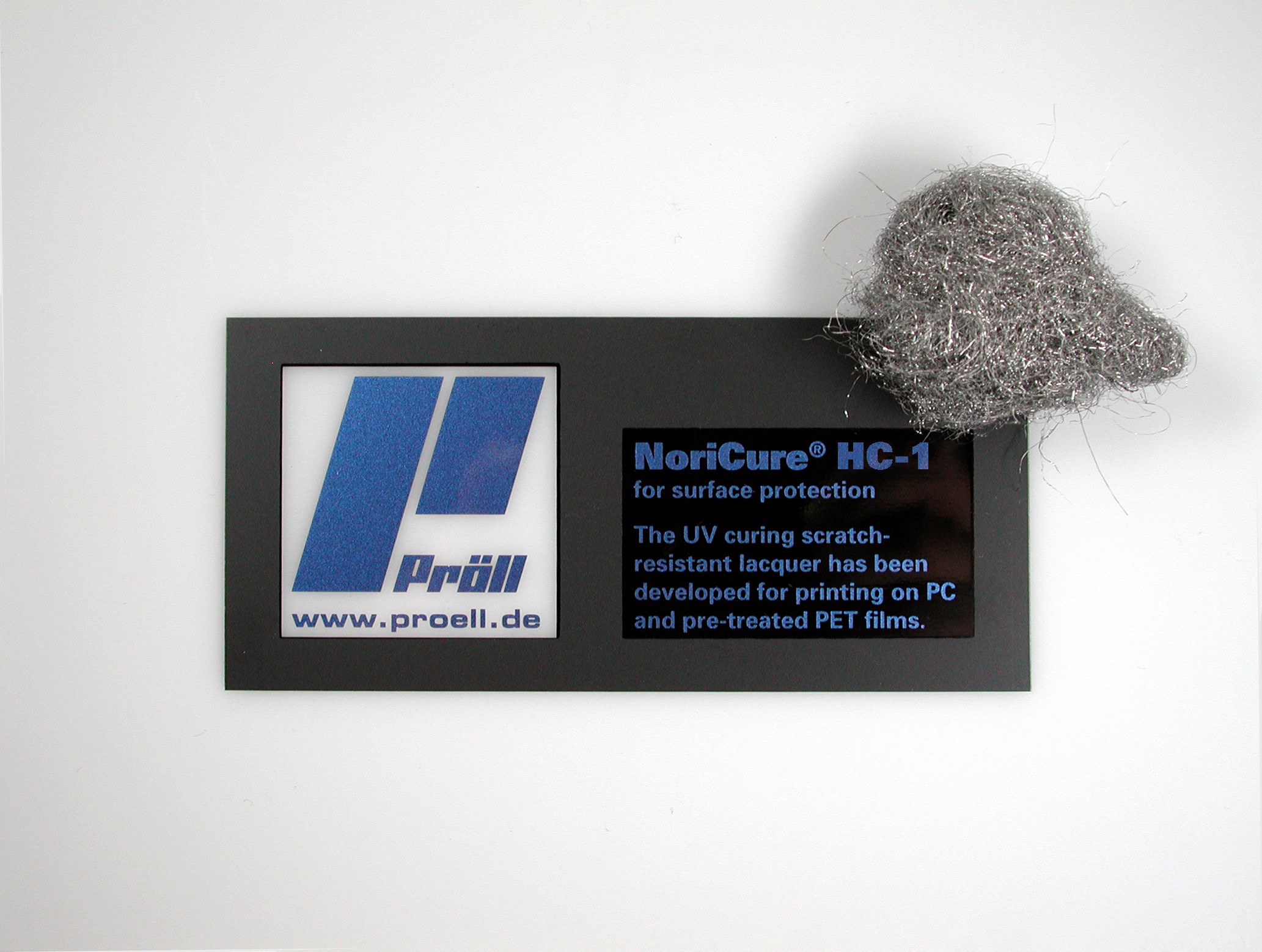

Decorated PC film partly protected with NoriCure HC-1


The lacquer is used to overprint and protect displays, lenses and panels. The cured lacquer shows excellent resistances to chemicals and cleaning agents. Besides the high gloss NoriCure HC-1, matt (NoriCure HC-1-001) and textured (NoriCure HC-1-002) as well as UV-stabilized (NoriCure HC-1-003) versions are available.

Nori Protect XCP

Nori Protect XCP is a glossy, solvent-based and weather resistant two-component screen printing protective lacquer showing good chemical and mechanical resistances.

Nori Protect XCP is suitable for printing on polycarbonate, rigid PVC, polystyrene, ABS and SAN, pre-treated PET films and corona-treated polyolefins (PE and PP) as well as for metal und aluminum.

Decorated surfaces can be overprinted resp. protected with Nori Protect XCP. The ink layer is formable on suitable substrates.

The lacquer has been formulated user-friendly in terms of ingredients and is free of aromatic compounds, cyclohexanone and phthalates.

NoriCure EVO

NoriCure EVO is a new UV curing screen printing ink developed for the manufacture of plastic and ID cards. The ink is suitable for printing on PC and PVC core films and subsequent lamination process.

pic-3-noriccure-evo-lamination-ink-for-id-cards

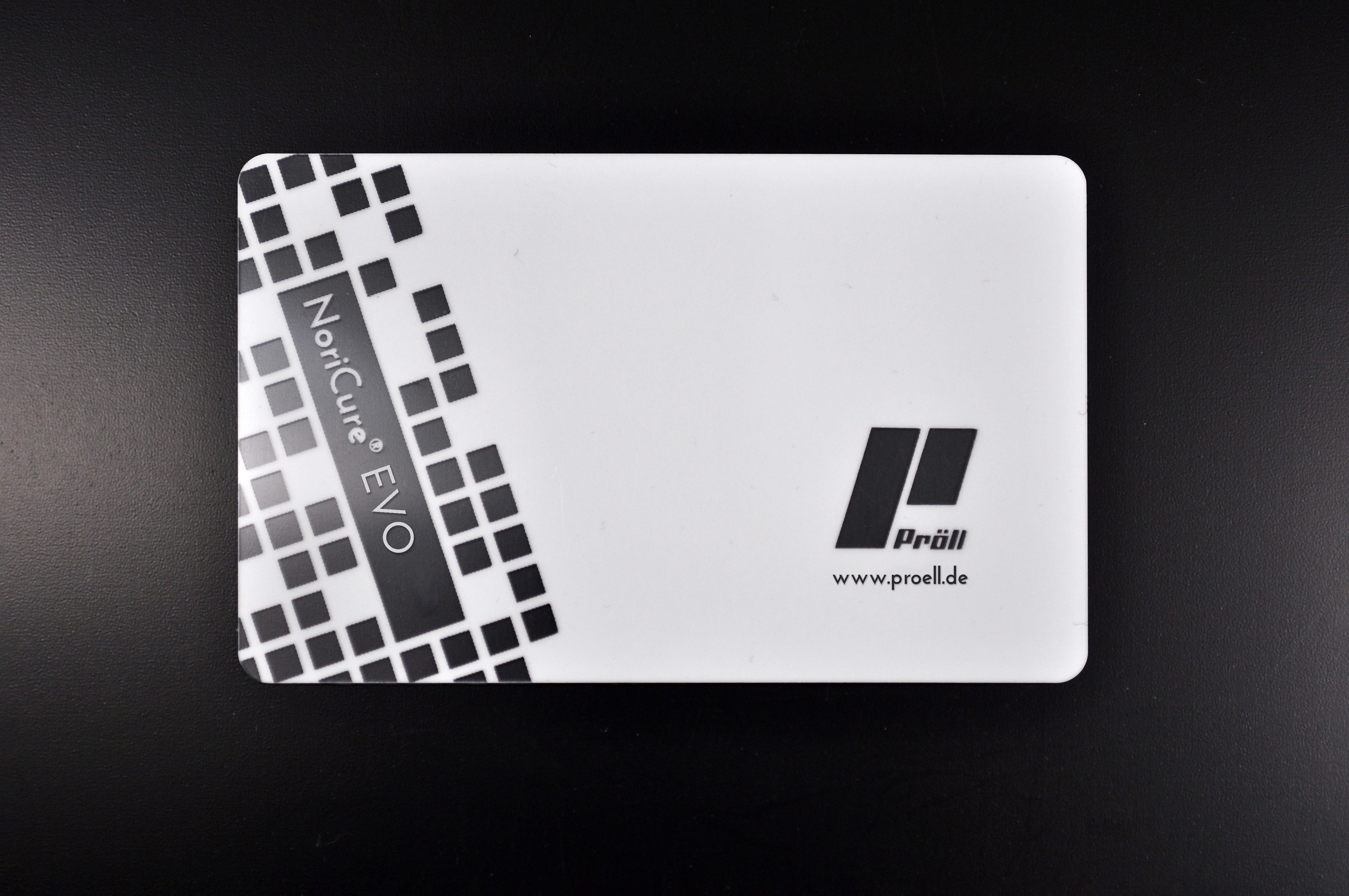

NoriCure EVO, opaque white, screen printing ink laminated with polycarbonate films


NoriCure EVO shows excellent laminating properties and good peel strength with PC and PVC overlay films.

Source: Proell
