motan-colortronic shows the ULTRABLEND 95 dosing and mixing system

The ULTRABLEND 95 is especially suitable for precise dosing of extremely small amounts of material directly into the injection moulding, extrusion or blow moulding machine. A maximum of four raw material components can be dosed by weight, one after the other, precisely as required by the recipe. They are then mixed together homogeneously in the downstream mixing chamber (4.5 litres volume) and fed into the feed throat of the processing machine. The minimum dosing amount is 3 g per component (900 g lot size). When two components are used a maximum throughput of 260 kg/h can be achieved. This gravimetric batch dosing and mixing unit is ideal for applications with frequent material changes: all parts in contact with the product can be rapidly removed and cleaned. In addition, the dosing slider remains closed during material changeover – not even the smallest amount of residual material can run out or be shaken out. The single load cell principle compensates for any vibration from the processing machine. This ensures the highest weighing precision.

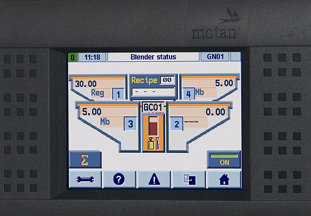

The GRAVInet control system is used to control the ULTRABLEND unit. The full colour display offers menu-based operation via the touch panel. Due to integrated Ethernet technology, operation can also be made via a motan WEBpanel or a PC, from any desired location. A conveying control for up to seven material loaders is integrated into the GRAVInet control as standard.

Motan colortronic gravimet
