The smart toothpick made of LSR

The smart toothpick made of…

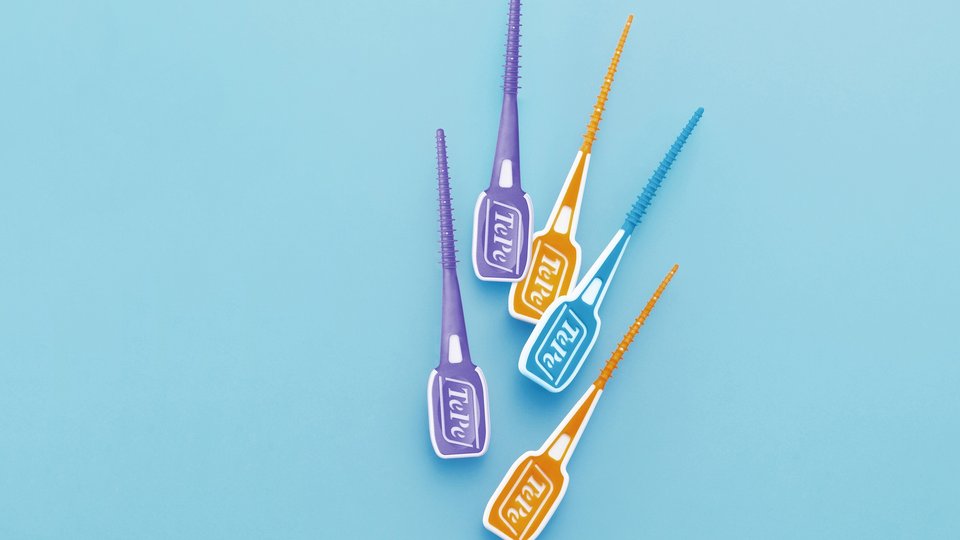

When something gets between your teeth, you need a toothpick. This handy implement is a valuable tool on such occasions. In addition, to avoid cavities, you should clean between your teeth regularly - ideally with as much comfort as possible. For this purpose, TePe, a Swedish family-owned company, offers the EasyPick. As a two-component part, it is both solid enough for the task and, because of its silicone overlay, gentle on the gums.  It is produced on a CXL 160 SilcoSet from KraussMaffei.

Silicone is the ideal material for oral hygiene applications because it is flexible, biocompatible, free of plasticizers and rugged. In addition, it can be used to map ultra-fine structures, making it possible to clean even tightly packed teeth on all four sides. TePe has been working in the field of oral health since its founding in 1965 and ships its products to over 60 countries.

Maximum precision in LSR processing

For the EasyPick, TePe relies on KraussMaffei's silicone and multicomponent expertise. The component consists of a white mold base body made of PBT (weight: 15 grams) with a conical tip and a colored silicon overlay weighing just under four grams. EasyPicks always come in sets of six, connected via thin break-off points.

TePe uses the tried-and-tested transfer method for production. The bottom, cooled mold-half contains the thermoplastic component, and the molded article produced here is positioned using a LRX linear robot in the top (hot) silicone half. In this process, the thin PBT are centered, but free in the cavity, allowing them to be encapsulated uniformly from all sides—at wall thicknesses of just 200 µm, manufacturing with maximum precision is essential.

The CXL160 machines that are used have an all-electric injection unit in L-connection. Because the daylight was enlarged by 200 millimeters thanks to the modular system, the non-operator side still remains easily accessible. The mold clamping platens have also been widened and the maximum mold installation height expanded.

Batch fluctuations reliably under control, even when adding dye

By the time the low-viscosity LSR flows into the evacuated cavity, the corresponding dye pigments have been added to it earlier in the mixing block. This is always a tricky matter in the reactive process. The silicone individual components are generally subject to high batch fluctuations and adding too much dye can lead to overmolding, while adding too little can lead to undermolding.

It pays to use the APC plus machine function for non-thermoplastics. Based on the melt viscosity and stored material parameters, such as compression, it adapts the changeover point in each individual cycle. The result is extremely high shot weight consistency—an important criterion for high-precision articles in particular.

The TePe EasyPick shows how useful the bond of thermoplastic and silicone can be.  Rugged support element and soft layer that is gentle on the gums: With the KraussMaffei SilcoSet, nothing gets in the way of a brilliant smile.
