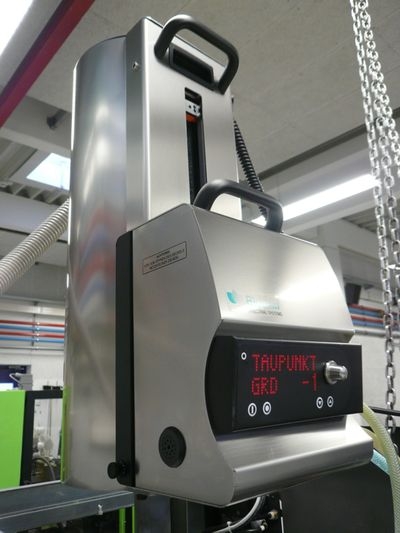

The new multi talent on the dryer market

The compressed air module is docked to the material hopper via a centralized compressed air coupling. Adjustable sensors inside the material hopper ensure exact process monitoring. With this feedback option the compressed air amount is optimal regulated to the actual material amount during the whole conveyor period. Through a multiport-I/O-interface the contact of the RDX compressed air module with its process environment is guaranteed.

Process room without any compromises – temperature barriers and intelligent compressed air circulation for optimal processes
Quality means the usage of high-quality components: all stainless steel and PTFE parts are produced in Germany. These components are also procurable for the clean room application. Therewith the RDX-series marks off from simpler solutions from third markets and relies on highest performance and price balance.

Perfect process area isolation is given by a new temperature barrier for thermal decoupling between interior and exterior side of the hopper. The material is so effectively decoupled from the environmental conditions. The homogeneous distribution and circulation of compressed air is one of the special attributes of the RDX-series. An integrated ring-jet system ensures the perfect process air distribution in the hopper and dehumidifies the particles from any residual moisture – effectively and fast. In contrast to comparable products the RDX-dryer doesn´t need any additional conveyor unit. The RDX-dryers can be equipped with an infinitely variable adjustable hopper sensor which is integrated in the control system of the dryer. Thereby the operator is given simplest handling and highest reliability combined with lower acquisition costs.

The new multi talent on the dryer market

RDX-modularity as an economical solution for processor
Standardized basis hoppers and appropriate extension elements of the RDX-series offer the possibility to simply and economically realize different sizes and drying performances. With this solution the processor is not forced to decide definitely on one size. At any time the operator is able to react on changing production conditions, different materials or shot weights. These individual adjustments are new and unique on the dryer market.

Concretely: With 5 basis sizes and 4 extension units – only 9 standard elements – 38 sizes with process volumes between 0.5 l and 82 l are feasible. This covers the complete performance range for small dryers which have a maximum technical process performance of 100 liters. The trick is an express-exchanging-system using an extender: It allows the quick and flexible change of material hoppers to adjust the volume of the hopper to the production.

The volumes of the RDX-material hoppers consider production between 0.5 l (RDX 005) and 82 l (RDX 82). The processor can choose between 38 different hopper sizes – drying times and temperatures vary due to volume and material type. Standard data are programmed in the RDX-series which can be adjusted to individual requirements. The simple construction of the systems allows a reduction of necessary modules which help reduce error sources and allows accessibility for easier cleaning and maintenance. Additionally the RDX-series is compact and also looks really good.

The new RDX-series was consciously not built with main focus on “revolutionary new development”. Instead, the idea was to use the knowledge and experience with compressed air technology for drying for a targeted development. RDX is the consequent, technologically high-quality transformation of this idea in a product which is able to represent the technological leadership plausibly. Alexander Lintner sums up: “The processor should immediately see that this product is an honest solution to material drying problems and with its special execution, it is also capable of doing it.”
