Krauss maffei km 80-750 cx - 503569

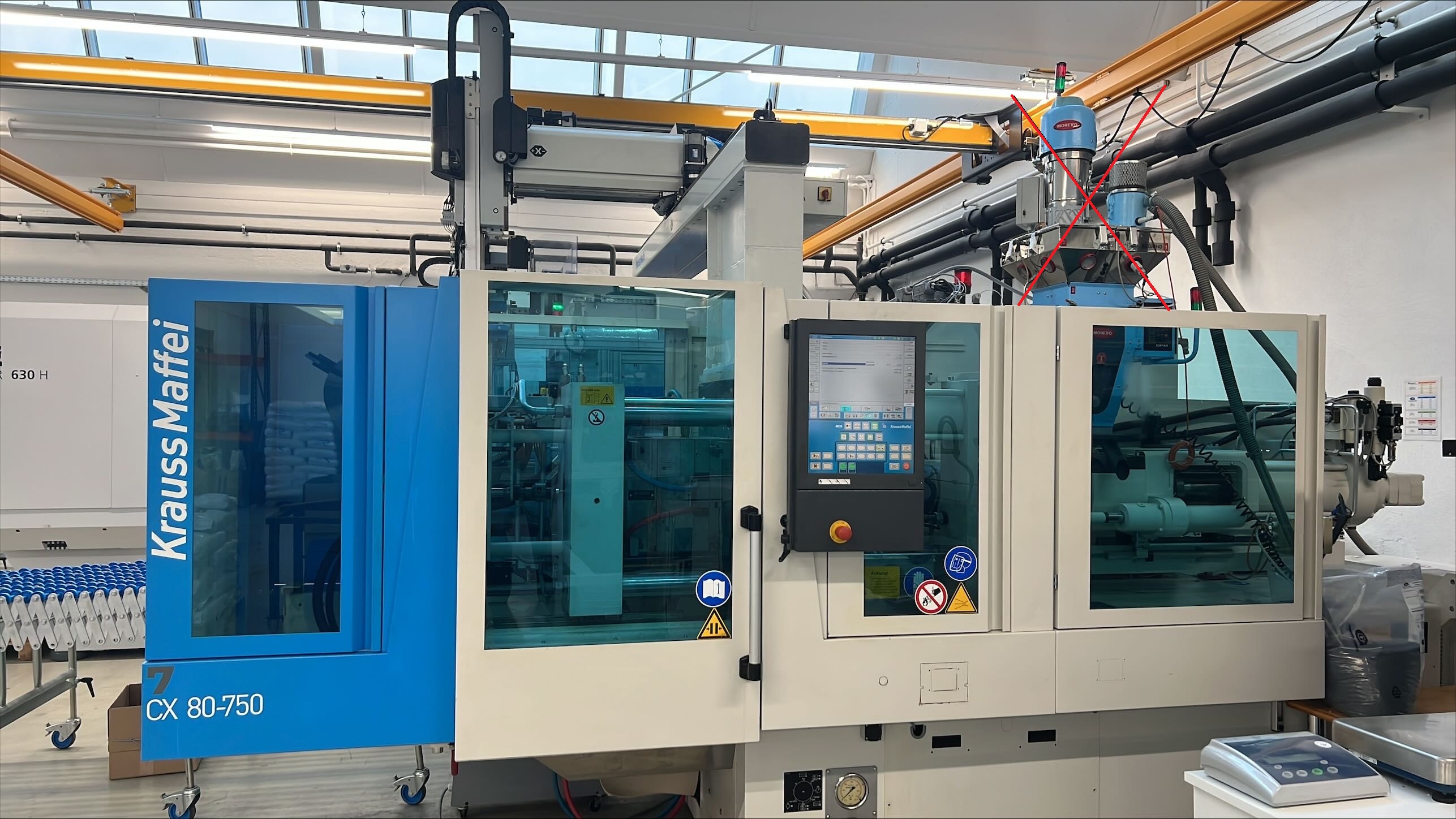

KRAUSS MAFFEI KM 80-750 CX

warehouse no.:    503569
manufacturer:    KRAUSS MAFFEI
type:    KM 80-750 CX
controller:    MC6
year of construction:    2012
operation hours:    34000 h

The revised KraussMaffei CX series offers the right solution for every customer requirement.
With different components, the machine can be configured individually for each individual - whether contract injection molder or technology group. With the fully hydraulic CX series, KraussMaffei offers particularly compact, efficient and flexible two-platen machines.

The highlights of the CX series:

Compact
-By two-plate concept with cantilever clasp
-with generous footprint for peripherals

Efficient
-By intelligent energy management and BluePower efficiency packages

Thanks to the new drive concept and close hydraulics according to the latest technology

Flexible
-By modular design-as a powerful basis for advanced technologies

technical data clamping unit
clamping force:    800    kN
distance between tie-bars h x v:    470 x 420    mm
of mould plates h x v:    745 x 710    mm
min. mould height:    250    mm
max. mould height:    500    mm
max. open daylight:    750    mm
opening stroke:    500    mm
ejector stroke:    150    mm
ejector force:    23    kN
centering diameter of moving platen:    125    mm
centering diameter of fixed platen:    125    mm
weight of mould:    1000    kg

technical data injection unit
screw diameter:    45    mm
swept volume:    318    ccm
injection pressure:    2336    bar
screw length:    22    l/d
screw speed:    355    min
injection rate into the open:    143    g/s PS
number of heating zones:    5

measures & weight
measures of machine l x w x h:    4.5m x 1.5m x 2m
total weight:    3900KG

equipment included
screen text german
CEE-socket 16A
pressure accumulator for parallel function of hydr.ejector and core pulling
core pulling hydraulically 1x
air valve 1x
machine incl. Handling
machine with material hopper
machine without belt conveyor
machine without hopper loader
Anti vibration mounts
interface robot EUROMAP 67
interface USB
Schuko-socket 10A
Servomotor pump drive Energy-saving drive
increased oil cooler

technical data robot-system
handling type:    integrierter Linearroboter
manufacture:    Krauss Maffei
controller:    LRX 100
year of construction:    2012

handling weight:    10    kg
operation hours:    3400    h
X axis:    550    mm
Y axis:    1200    mm
Z axis:    1500    mm
screen-text:    deutsch
total weight:    255    kg
robot overall dimensions:    2,70x1,30x1,60m
