Engel Victory 330-120 Tech - 503560

No. 138027

Type of offer::: Selling
Price:: not specified
Available quantity:: 1 pc
Condition:: Second hand
Year:: 2007
Manufacturer:: Engel
Clamping force [kN]:: 1200
Valid for:: 363 days
User:: bernhard
Company:: Maschinenhandel Borowski GmbH
Name and surname:: Benjamin / Jan Borowski
Contact:

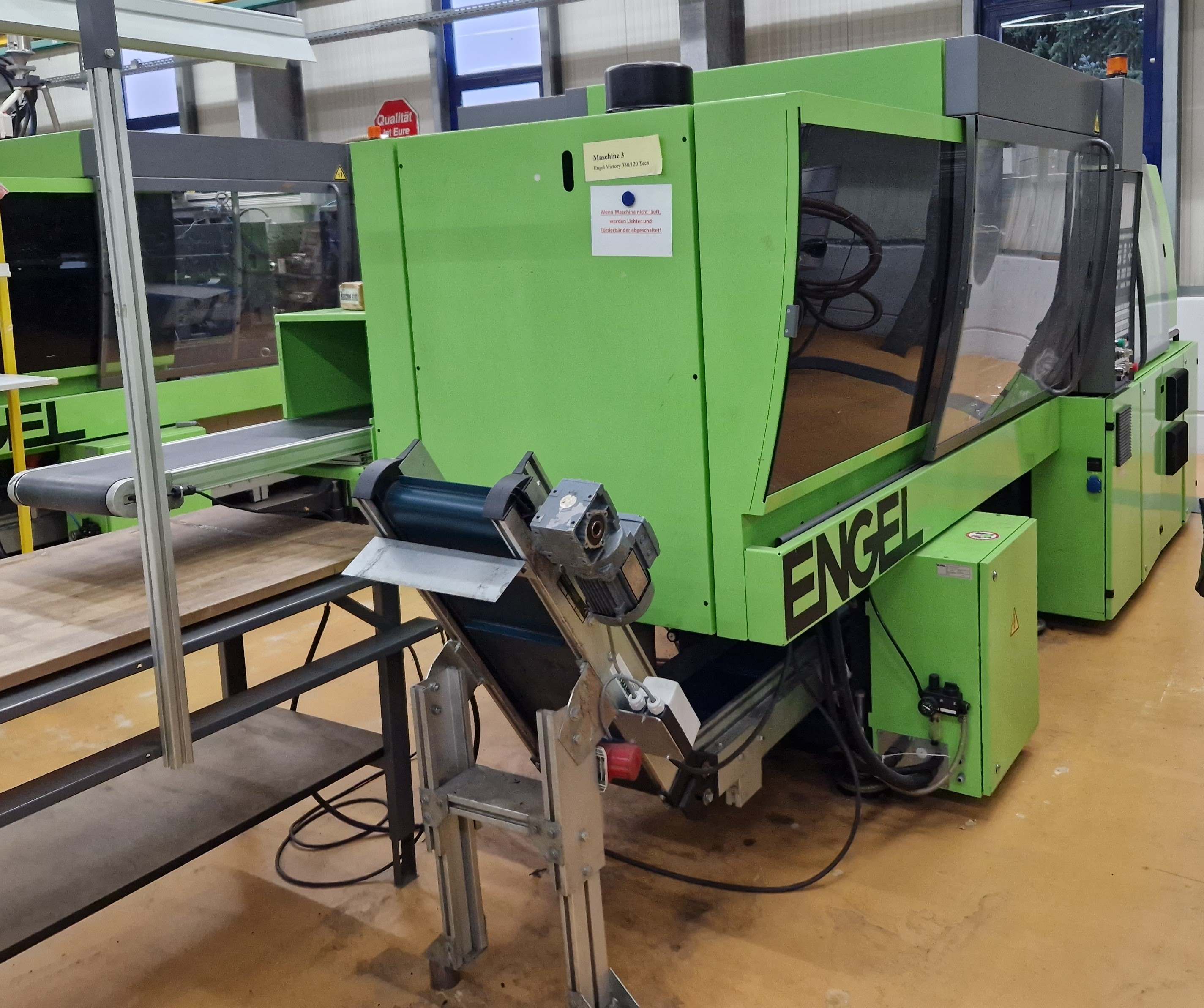

ENGEL Victory 330-120 Tech
warehouse no.:    503560
manufacturer:    ENGEL
type:    Victory 330-120 Tech
controller:    CC100
year of construction:    2007
operation hours:    64291 h

technical data clamping unit
clamping force:    1200    kN
of mould plates h x v:    740 x 470    mm
min. mould height:    300    mm
max. open daylight:    800    mm
opening stroke:    507    mm
ejector stroke:    130    mm
ejector force:    40    kN
centering diameter of moving platen:    125    mm
centering diameter of fixed platen:    125    mm
weight of mould:    825    kg

technical data injection unit
screw diameter:    35    mm
swept volume:    154    ccm
injection pressure:    1595    bar
screw length:    20    l/d
screw stroke:    160    mm
screw speed:    400    min
plasticising rate:    151    g/s PS
number of heating zones:    4
nozzle stroke:    300    mm

measures & weight
measures of machine l x w x h:    4.35m x 2.2m x 2.1m
total weight:    7300KG

equipment included
screen text german
screen text english
CEE-socket 16A
core pulling hydraulically 2x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
machine without material hopper
Anti vibration mounts
electric interface for handling units according to Euromap 12
interface for ejector plates safety
Schuko-socket 10A

technical data robot-system
handling type:    Linear
manufacture:    ENGEL
controller:    ER-HLI41 VC EP5
year of construction:    2007
handling weight:    2    kg
X axis:    300    mm
Y axis:    250    mm
Z axis:    1025 mm
