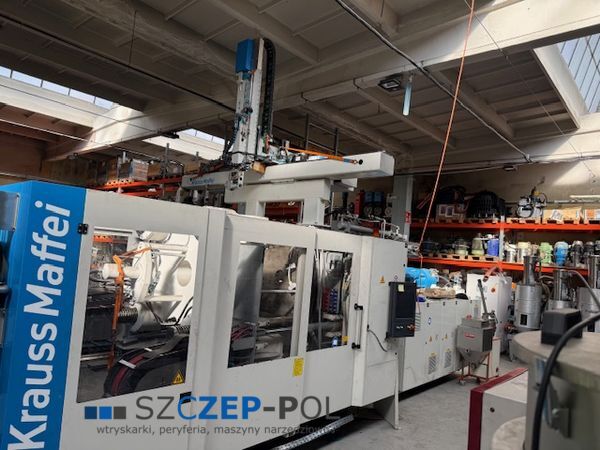

Krauss Maffei KM 400-3000 GX Blue Power injection molding machine, 400t, 2018

SZCZEP-POL
Sales of injection molding machines and peripherals

Type: Krauss Maffei KM 400-3000 GX Blue Power with Krauss Maffei LRX 250 robot / Operating hours: ca. h in automatic mode
Year of production: 2018

Injection elements:
Screw diameter: 80 mm
Injection weight: 1464 g
Injection pressure: 1855 bar
Injection volume: 1608 cc

Closing elements:
Closing force: 400 t
Clearance between columns: 920x830 mm
Table top dimensions max: 1280x1240 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
MC5 - touch screen (with the possibility of translation into Polish)

Additional equipment:
Very good technical condition
Hybrid machine: energy-saving, fast-running, very quiet
Operating hours: approx. h in automatic mode
Euromap 67
Robot interface
Min./max. mold height: 400/900 mm
Air valve x 4
Hydraulic core string x 4
Hot runner control x 36
Self-closing nozzle x 10
Reinforced injection system - bimetal
Proportional valve on the injection system - precise injection
The main engine in the machine - servo motor controlled by an inverter - energy saving
Automatic upper column extension function
The machine is regularly serviced by an authorized Krauss Maffei service center

Krauss Maffei LRX 250 Robot
Year of production: 2018
High-speed robot
5-axis robot: X, Y (telescopic), Z, B (rotation) and C axes driven by servo motors (electric)
Vacuum
Touch control panel
Robot base (adapter), safety cage, conveyor belt
Purchase of a robot and conveyor belt for an additional fee

Dimensions:
Weight: 22650 kg
Length/Width/Height: 7.58x2.73x2.32 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: upon request

We invite you to see the machine in operation in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machines: injection molding machines and peripherals, and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

Possibility of LEASING! At the client's request, we can help organize leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
