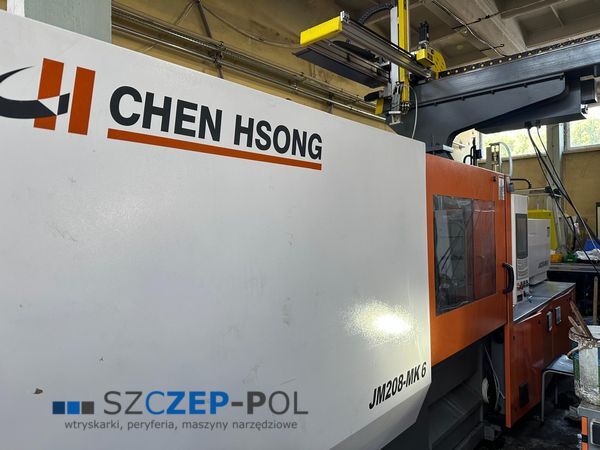

Chen Hsong JetMaster 208-MK6 injection molding machine with Samfacc robot, 208T, 2021

Szczep-Pol

Sale of injection molding machines and peripheral equipment.
Type: Chen Hsong JetMaster 208-MK6 with Samfacc robot / hybrid machine.
Year of manufacture: 2021.

Description:
Injection unit:
Screw diameter: 52 mm.
Shot weight: 502 g.
Injection pressure: 1893 bar.
Injection volume: 552 ccm.

Clamping unit:
Clamping force: 208 t.
Distance between tie bars: 530x530 mm.
Maximum platen dimensions: 790x765 mm.
Ejector: electric.
Clamping system: toggle.

Control:
BECKHOFF - touch screen.

Additional equipment:
Hybrid machine: energy-efficient, high-speed, very quiet.
Euromap 67.
Euromap 12.
Robot interface.
Air valve x 2.
Hydraulic core pull x 2.
Hot runner control x 8.
Armored injection unit - bimetal.
Main motor in the machine - servo motor controlled by an inverter - energy saving.
Central lubrication system.
Automatic mold height adjustment.
Rexroth hydraulics.
Machine serviced in Germany.

Samfacc robot
Year of manufacture: 2022.
4-axis robot: X, Y (telescopic), Z axes driven by servo motors (electric), C axis - pneumatic.
Safety package.
Robot base (adapter), conveyor, safety cage.
Purchase of the robot and conveyor for an additional charge.

Dimensions:
Weight: 6800 kg.
Length/Width/Height: 6.10x1.50x2.00 m.

Power supply:
Pump/Motor: 0 kW.
Heaters: 0 kW.
Total: 0 kW.

Price: on request.
