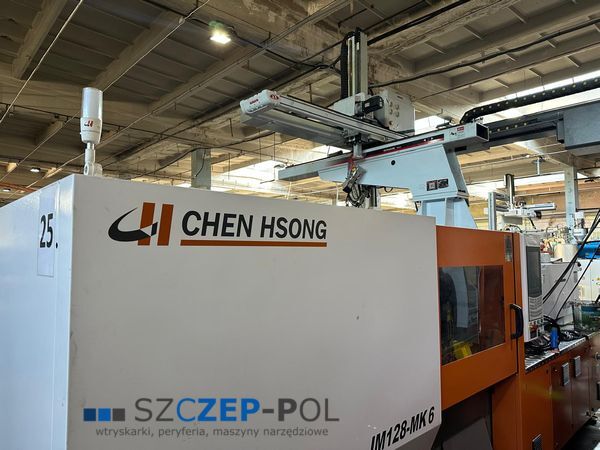

Chen Hsong JetMaster 128-MK6 injection molding machine with Samfacc robot - hybrid machine, 128T, 2021

Szczep-Pol
Sale of injection molding machines and peripheral equipment.

Type: Chen Hsong JetMaster 128-MK6 with Samfacc robot / hybrid machine
Year of manufacture: 2021

Description:

Injection unit:
Screw diameter: 41 mm
Shot weight: 246 g
Injection pressure: 1890 bar
Shot volume: 271 ccm

Clamping unit:
Clamping force: 128 t
Space between tie bars: 410x410 mm
Max platen dimensions: 620x605 mm
Ejector: electric
Clamping system: toggle

Control system:
BECKHOFF - touchscreen

Additional equipment:
Hybrid machine: energy-efficient, high-speed, very quiet
Euromap 67
Robot interface
Air valve x 2
Hydraulic core pull x 2
Hot runner control x 8
Reinforced injection unit - bimetal
Main motor in the machine - servo motor controlled by an inverter - energy saving
Central lubrication system
Automatic mold height adjustment
Rexroth hydraulics
Machine serviced in Germany

Samfacc robot
Year of manufacture: 2022
4-axis robot: X, Y (telescopic), Z axes driven by servo motors (electric), C axis - pneumatic
Safety package
Robot base (adapter), conveyor belt, safety cage
Robot and conveyor available at an additional cost

Dimensions:
Weight: 4000 kg
Length/Width/Height: 4.90x1.30x1.80 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastic processing machines: injection molding machines, peripheral equipment, and machine tools.
All equipment offered by our company is located in our warehouses in Lodz.
All injection molding machines and peripheral equipment are started up before sale by our service technicians.
It is possible to watch a video of the technical tests of the selected machine or participate in live technical trials at our company in Lodz.
