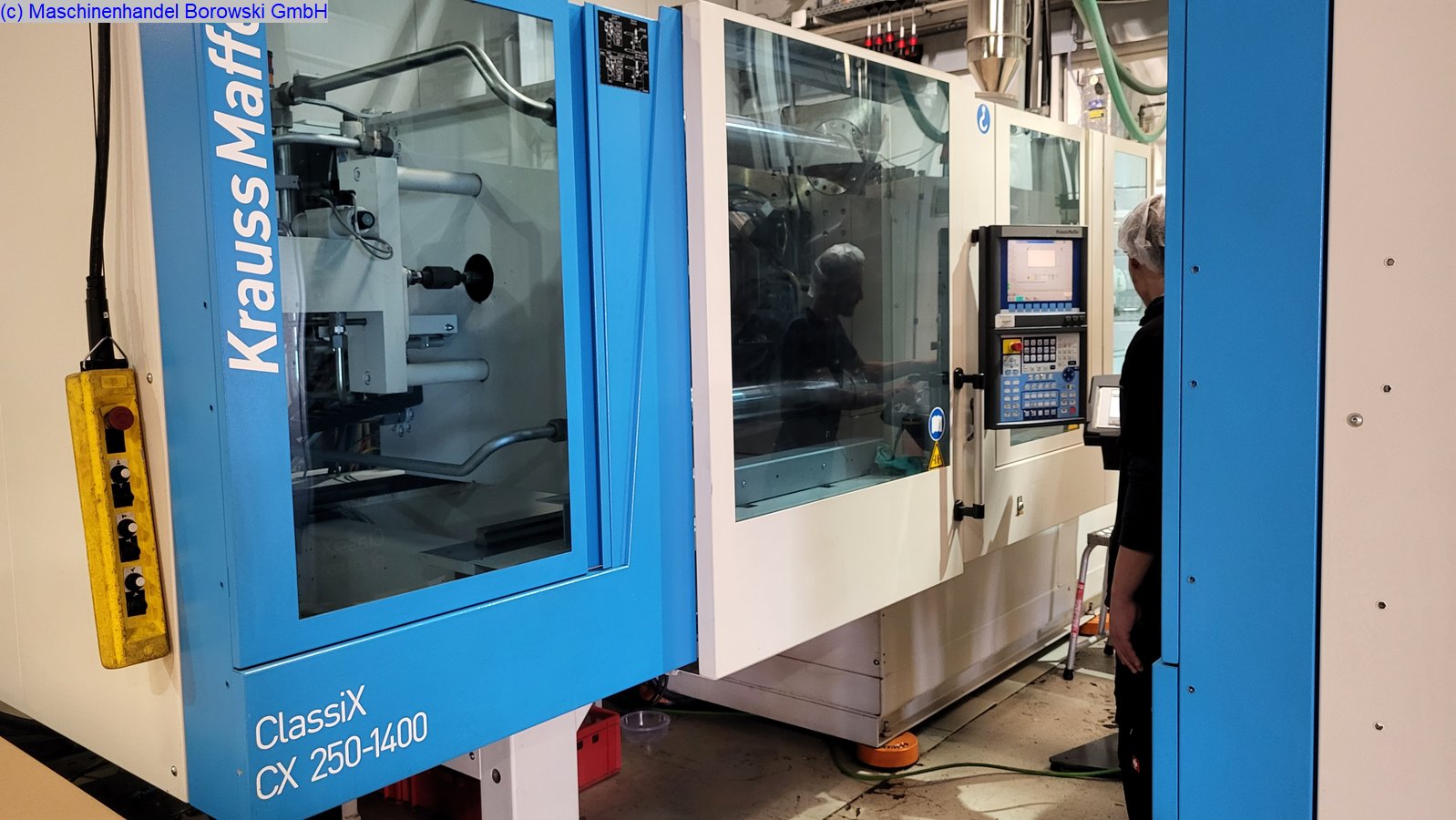

Injection molding machines Krauss Maffei KM 250-1400 CX

No. 126810

Type of offer::: Selling
Price:: not specified
Available quantity:: 1 pc
Condition:: Second hand
Year:: 2010
Manufacturer:: Krauss Maffei
Clamping force [kN]:: 2000
Valid for:: 256 days
User:: bernhard
Company:: Maschinenhandel Borowski GmbH
Name and surname:: Benjamin Borowski
Contact:

Stock no.: 503243
Manufacturer: KRAUSS MAFEI
Type: KM 250-1400 CX
Controller: MC5
Year of construction: 2010
Operating hours: 54872 h

Technical data closing side
Closing force: 2500 kN
Rail dimension v: 630 mm
Rail dimension h: 630 mm
Plate size h: 995 mm
Plate size v: 1050 mm
Minimum installation height: 330 mm
Plate distance max.: 1150 mm
Opening stroke: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Tool weight: 3430 kg
Technical data injection side
Screw diameter: 55 mm
Displacement: 570 cc
Injection pressure: 2387 bar
Screw length: 22 l/d
Screw speed: 260 min
Plasticizing flow: 49 g/s PS
Number of heating zones: 6
Dimensions & Weight
Machine dimensions LxWxH: 6.1mx 2.2mx 2.3m
Total weight: 15000KG
gear
Screen text German
CEE socket 16A
Pressure accumulator for increased injection performance
leveling elements
EUROMAP 67 interface
low-wear plasticizing unit
