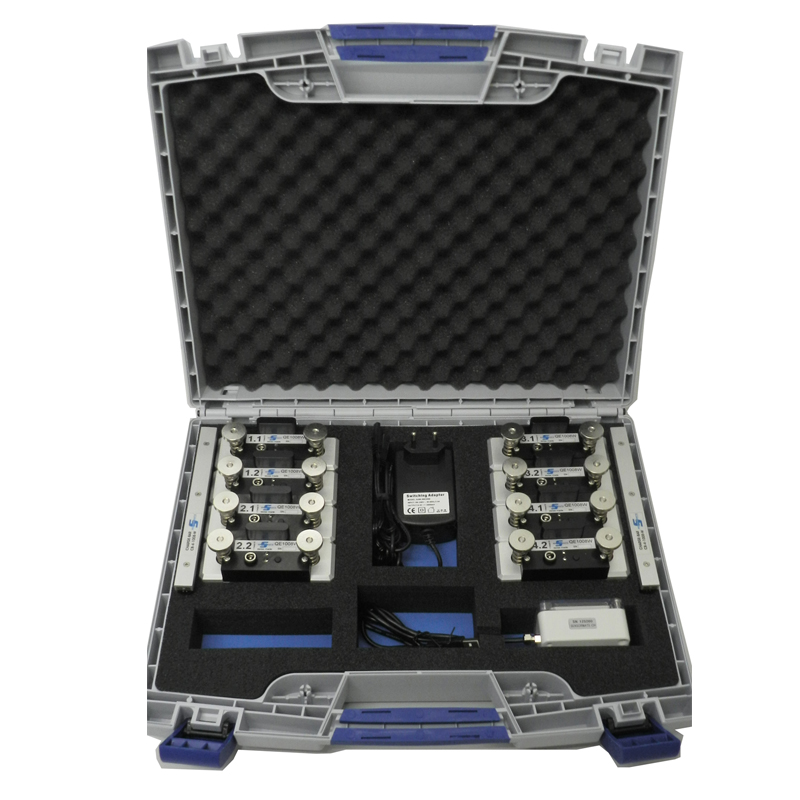

Wireless QE1008-W-08 set
The magnetic strain sensor set measures surface strain directly at the mounting point. The magnetic sensor technology was developed by Sensormate AG. Sensor installation is non-destructive, very fast, and simple. The integrated signal amplifier with a wireless transmission module enables convenient and precise measurements on virtually any machine.
Description
- complete system for simultaneous strain measurement on four tie bars
- direct display of the measured value in με, kN, or t via the Inspectmate software supplied with the sensor set
- wireless transmission 2.4 GHz - no cables, making measurement easier
- fast and non-destructive installation using magnets
- ideal for use in presses, injection molding machines, and die casting machines
- mounting on tie bars with diameters from 45 mm and on flat surfaces
- suitable for dynamic applications
- each measuring sensor has a built-in signal converter
- built-in rechargeable battery with operating time of up to 8 hours
- receiver with USB port
- very compact design, system very easy to operate
If you are interested in purchasing, please contact us.
