Foil production - measuring device - Knc-KS-1000 measuring strip

No. 137938

Type of offer::: Selling
Price:: ~3 551 EUR / set
Available quantity:: 3 set
Valid for:: 55 days
User:: kncautomation
Company:: KNC-Automation Sp. z o.o.
Name and surname:: ANDRZEJ CEBULA
Contact:

KNC-KS-1000 is a modern, modular system designed to precisely measure and control the width of the flat film spread on blown lines.

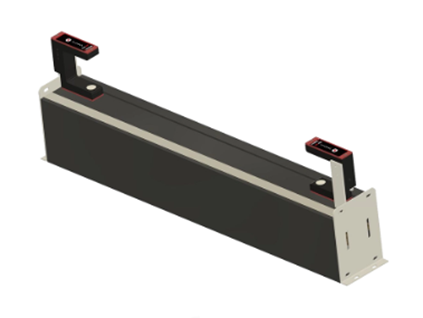

The advanced, non-contact measuring rod with two infrared sensors instantly and reliably detects the edges of the film, providing accurate data on its actual width.

The KNC-KS-1000's biggest advantage is that the measurement is performed after the foil has been shrunk. This makes the device ideal for applications where balloon circumference is traditionally monitored, ensuring greater repeatability and process control.

For the highest precision, the KNC-KS-1000 system is recommended to be mounted right next to the guide roller, preferably between two dedicated rollers, which maximizes stability and reading quality.

KEY FEATURES

Non-contact measurement

The system precisely detects the edges of the foil without physical contact and, therefore, without any interference in the production process.

<="" p="">

Automatic adaptation

Simple installation means the system can be implemented quickly and without any impact on current production.

Modular design

The modular design allows the system to be adapted to various line configurations and a variety of film widths.

Technical parameters

Power supply: 230 VAC, 50 Hz / 24VDC
Measuring range: 300-5000mm
Operating temperature: max. 50 °C
Measurement frequency: 100ms
Communication: 4-20mA / 0-10V / Modbus RTU/TCP IP
Control system: PLC Siemens
Accuracy: < 2000mm +/- 1mm
> 2000mm +/- 1% of range
