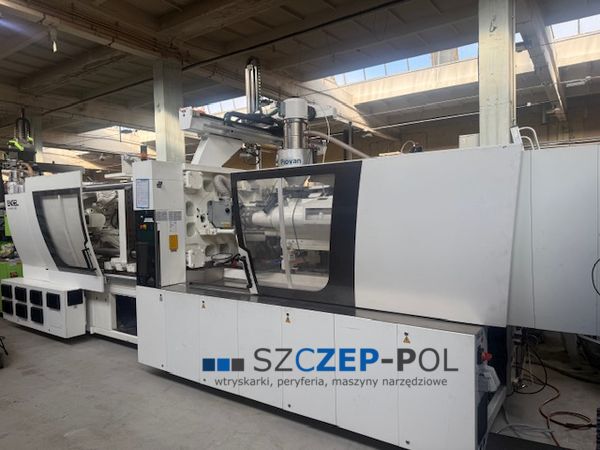

Engel e-Motion 740/280 T WP injection molding machine with TecnoMatic robot, 280 tons, 2016

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Engel e-Motion 740/280 T WP with TecnoMatic robot / Electric machine
Year of production: 2016
Description:
Injection elements:
Screw diameter: 50 mm
Injection weight: approx. 360 g
Injection pressure: 1900 bar
Injection volume: 393 ccm
Closing elements:
Closing force: 280 t
Clearance between columns: 780x780 mm
Maximum table plate dimensions: 1100x1100 mm
Ejector: electric
Closing system: knee
Control:
CC 300 - touch screen (with the possibility of translation into Polish)
Additional equipment:
Production line with a TecnoMatic Medium robot
The machine is in very good technical condition.
Electric machine: energy-saving, very quiet
Operating hours: approx. h in automatic mode
Euromap 67
Robot interface
Air valve x 5
Hydraulic core string x 4
Hot Channel Control x 64
Bimetal injection system - resistant to abrasion and corrosion
The main motor in the machine - servo motor controlled by an inverter - energy saving
Central lubrication system
Parallel movements
Automatic mold height adjustment
TecnoMatic Medium Robot
Year of production: 2020
6-axis robot: X, Y-telescopic, Z, A, B, C axes driven by servo motors (electric)
Touch control panel
Safety package
Robot base (adapter), conveyor belt, safety cage
Purchase of a robot and conveyor belt for an additional fee
Dimensions:
Weight: 17200 kg
Length/Width/Height: 7.37x2.10x2.30 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
All injection molding machines and peripherals are commissioned by our service technicians before sale.
You can watch a video of the technical tests of the selected machine or take part in live technical tests at our company in Łódź.
LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
