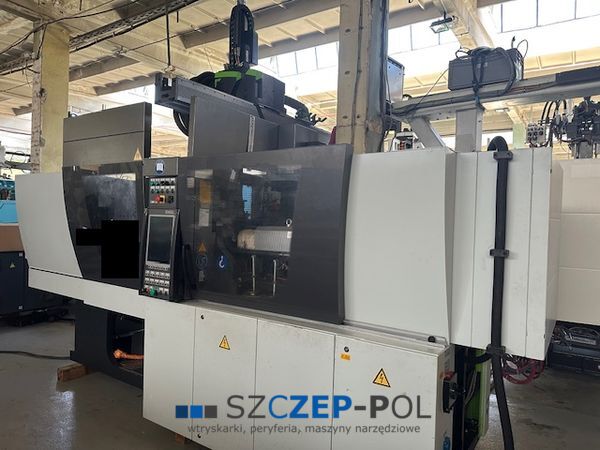

Engel Victory 500/80 Tech / Production line with Engel Viper 12/80t robot, 2011

Type: Engel Victory 500/80 Tech / Production line with Engel Viper 12/80t robot, 2011

Year of production: 2011
Location: Lodz

Injection elements:
Screw diameter: 45 mm
Injection weight: approx. 295 g
Injection pressure: 1598 bar
Injection volume: 318 ccm

Closing elements:
Closing force: 80 t
Clearance between columns: 0x0 mm
Max table plate dimensions: 670x600 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
CC 200 - touchscreen (with the possibility of translation into Polish)
Additional equipment:
Tie-bar-less machine
Euromap 67
Robot interface
Hydraulic core string x 3
Reinforced injection system - bimetal

Engel Viper 12 Robot
Year of production: 2014
5-axis robot: X, Y, Z, B axes (rotation) driven by servomotors (electric), A axis - pneumatic
Touchscreen control panel
Robot base (adapter), safety cage with part separator
Purchasing a robot for an additional fee

Dimensions:
Weight: 5300 kg
Length/Width/Height: 4.57x1.48x2.38 m

Power supply:
Pump/Motor: 15 kW
Heaters: 0 kW
Total: 0 kW
Price: on request

We invite you to see the machine in operation in Łódź.
We offer all the additional peripheral equipment necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
