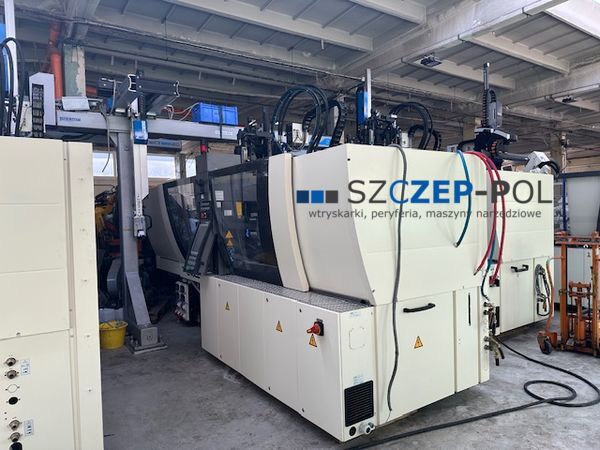

Engel Victory 330H/80V/160 combi Ecodrive with Sepro SR S5-25 S3 Trans /16t robot. 2013

SZCZEP-POL
Sales of injection molding machines and peripherals

Type: Engel Victory 330H/80V/160 combi Ecodrive / Production line with Sepro SR S5-25 S3 Trans robot / Operating hours: ca. 18,000 h in automatic mode
Year of production: 2013
Location: Lodz

Injection elements:
Screw diameter: 30 mm
Injection weight: approx. 100 g
Injection pressure: 2385 bar
Injection volume: 113 ccm

Closing elements:
Closing force: 160 t
Clearance between columns: 0x0 mm
Table top dimensions max: 750x750 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
CC 200 - touch screen (with the possibility of translation into Polish)

Additional equipment:
Two-unit injection molding machine with rotary table and robot
Tie-bar-less hybrid machine: energy-saving, high-speed, very quiet
Very good technical condition
Operating hours: approx. 18,000 in automatic mode
Total working hours: 24,312 h
Euromap 67
Robot interface
Air valve x 5
Hydraulic core string x 5
Hot runner control x 16
Reinforced injection systems - bimetal
Main motors - 2 x inverter-controlled servo motors
Proportional valves on injection systems - precise injection
Vertical screw diameter: ⌀22 mm - approx. 28 g/PS
It is possible to purchase a turntable

Sepro SR S5-25 S3 Trans Robot
Year of production: 2013
3-axis robot: X, Y, Z (telescopic) axes driven by servomotors (electric)
Travel in axes approx.: X-2000, Y-1000, Z-1500
Automatic axle lubrication
Touchscreen control panel
Safety package
Robot base (adapter), safety cage
Purchasing a robot for an additional fee

Dimensions:
Weight: 8700 kg
Length/Width/Height: 5.35x1.76x3.42 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We invite you to see the machine in operation in Łódź.
We offer all the additional peripheral equipment necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
