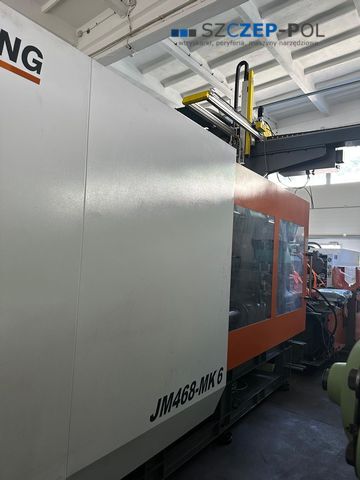

Chen Hsong JetMaster 468-MK6 injection molding machine with Samfacc robot, 468T, 2021

Szczep-Pol
Sale of injection molding machines and peripheral equipment.

Type: Chen Hsong JetMaster 468-MK6 with Samfacc robot / hybrid machine.
Year of manufacture: 2021.
Description:

Injection unit:
Screw diameter: 83 mm
Shot weight: 2043 g
Injection pressure: 1840 bar
Injection volume: 2245 ccm

Clamping unit:
Clamping force: 468 t
Distance between tie bars: 830x830 mm
Max platen dimensions: 1210x1165 mm
Ejector: electric
Clamping system: toggle

Control:
BECKHOFF - touch screen

Additional equipment:
Hybrid machine: energy-saving, high-speed, very quiet
Euromap 67
Robot interface
Air valve x 4
Hydraulic core pull x 2
Hot runner control x 8
Armored injection unit - bimetal
Main motor in the machine - servo motor controlled by an inverter - energy saving
Central lubrication system
Automatic mold height adjustment
Rexroth hydraulics
Machine serviced in Germany
Samfacc robot
Year of manufacture: 2022
4-axis robot: X, Y (telescopic), Z axes driven by servo motors (electric), C axis - pneumatic
Safety package
Robot base (adapter), conveyor belt, safety cage
Robot and conveyor purchase available at an additional cost

Dimensions:
Weight: 19800 kg
Length/Width/Height: 8.80x2.00x2.30 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request
