Cartridge dispenser with Altech AlritmaS labeling system
No. 101355
- Type of offer::
- Selling
- Price:
- not specified
- Valid for:
- 67 days
-
- User:
- tminkjet
- Company:
- TM INK-JET
- Name and surname:
- Tomasz Mrowiec
- Contact:

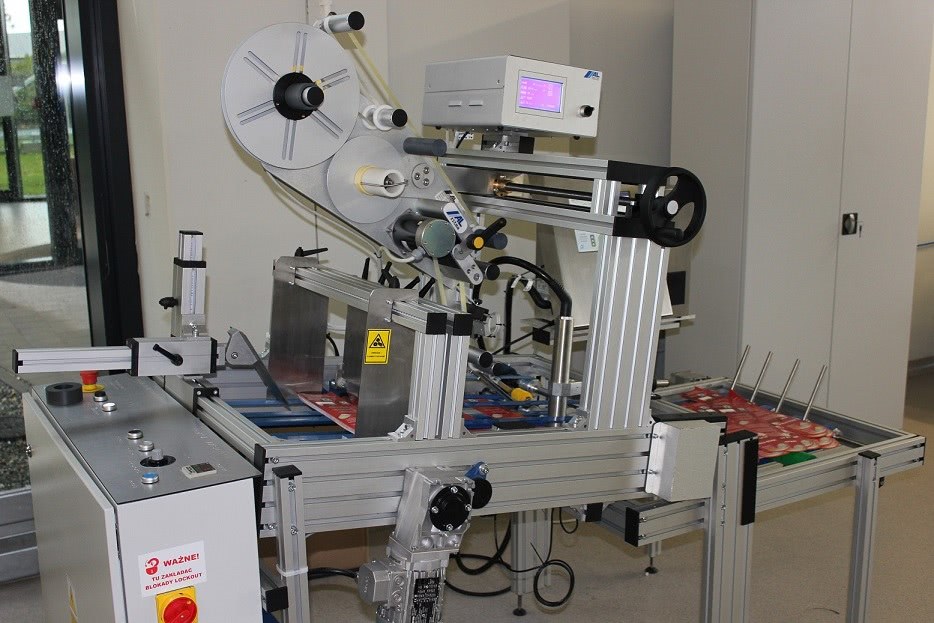

The device allows to move at a constant speed, single cartons
from the vertical loading warehouse to the horizontal delivery warehouse.
When moving, you can print batch number and / or expiration date,
on a cardboard box using a high resolution printer, based on HP technology,
HSAJET® MiniTouch or HSAJET Micron.
The labeled cartons are fed to the horizontal receiving warehouse, where they are
can be received by the service.
The device is made of aluminum profiles and stainless steel and meets
current European directives.
It can also be made as a mobile station (on wheels).
TECHNICAL DATA
Length: 2300 mm
Height: 1300 mm
Width: approx. 850 mm
Performance of this application: approximately: 10 - 50.000 pcs / h
Dimensions of cartons 50-400mm
Dimensions of cartons 50-400mm
Movement speed: 5 - 50 m / min
Power supply: 1 f; 230V or 3F / 400V
STANDARD EQUIPMENT
Programmable counter of the described cartons.
Stepless speed control with inverters.
Product counter sensor.
ADDITIONAL EQUIPMENT
Speed Synchronization Module - encoder.
Fixing the laser head, printer.
Fixing the labeling system with XY regulation.
