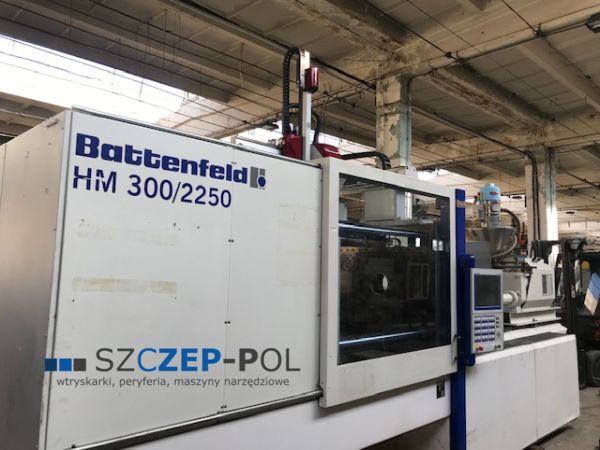

Battenfeld HM 300 / 2250S injection molding machine with a Wittmann W818 / 300T robot, 2007

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: BATTENFELD HM 300 / 2250S with a Wittmann W818 robot / Machine in very good technical condition. / Hours of operation: approx. 44,000 h in automatic mode
Year of production: 2007

Description:

Injection components:
Screw diameter: 55 mm
Shot weight: 702.5 g
Injection pressure: 2500 bar
Injection volume: 772 ccm

Closure components:
Closing force: 300 t
Clearance between columns: 710x630 mm
Max dimensions of the table plates: 1030x1020 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
UNILOG B6 - touch screen (with the possibility of translation into Polish)

Additional equipment:
The machine is in very good condition
Euromap 67
Robot interface
Air valve control
Hydraulic core string x 1
Hot runner control x 8
Injection system resistant to abrasion and corrosion
Proportional valve on the injection system - precise injection
A new, original screw and cylinder are installed in the machine

Wittmann W818 robot
High-speed robot, 4-axis: X, Y, Z axes driven by servo motors (electric); traffic A and C
Touch control panel
Robot base (adapter), safety cage

Dimensions:
Weight: 13,000 kg
Length / Width / Height: 6.90x1.90x2.40 m

Power supply:
Pump / Motor: 45 kW
Heaters: 22.7 kW
Total: 67.7 kW

Price: on request

We invite you to present the machine while working in Łódź.
We offer all the additional peripheral devices necessary to create a production line and tooling machines.
We are a leading European supplier of used machines for plastics processing: injection molding machines and periphery as well as tool machines.
All devices offered by our company are located in our warehouses in Łódź.

Possibility of LEASING! At the client's request, we can help organize the leasing in a simplified form, through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of after-sale devices
