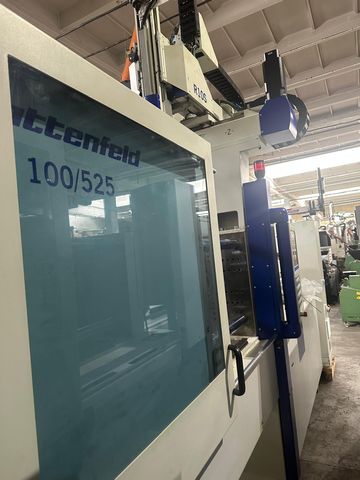

Battenfeld HM 100/525 injection molding machine with Battenfeld R10S robot, 100T, 2008

SZCZEP-POL
Sale of injection molding machines and peripheral equipment

Type: Battenfeld HM 100/525 with Battenfeld R10S robot
Operating hours: approx. 19,000 in automatic mode
Year of manufacture: 2008
Location: Łódź

Injection unit:
Screw diameter: 40 mm
Shot weight: 228.4 g
Injection pressure: 2100 bar
Shot volume: 251 ccm

Clamping unit:
Clamping force: 100 t
Space between tie bars: 470x420 mm
Max platen dimensions: 680x663 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
UNILOG B6 - touchscreen, with option for Polish language translation

Additional equipment:
Very good technical condition
Operating hours: approx. 19,000 in automatic mode
Total operating hours: 26,580
Euromap 67
Robot interface
Air valve x 1
Hydraulic core pull x 1
Injection unit resistant to wear and corrosion

Battenfeld R10S robot
Year of manufacture: 2008
5-axis robot: X, Y, Z axes driven by servomotors (electric); B axis - pneumatic, C axis
Robot base (adapter)
Robot available at an additional cost

Dimensions:
Weight: 4600 kg
Length/Width/Height: 4.23x1.41x2.05 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request
