Arburg Allrounder 630 S 2500-800 - 503604

No. 138032

Type of offer::: Selling
Price:: not specified
Available quantity:: 1 pc
Condition:: Second hand
Year:: 2012
Manufacturer:: Arburg
Clamping force [kN]:: 2500
Valid for:: 363 days
User:: bernhard
Company:: Maschinenhandel Borowski GmbH
Name and surname:: Benjamin / Jan Borowski
Contact:

ARBURG Allrounder 630 S 2500-800
warehouse no.:    503604
manufacturer:    ARBURG
type:    Allrounder 630 S 2500-800
controller:    Selogica
year of construction:    2012
operation hours:    43331 h

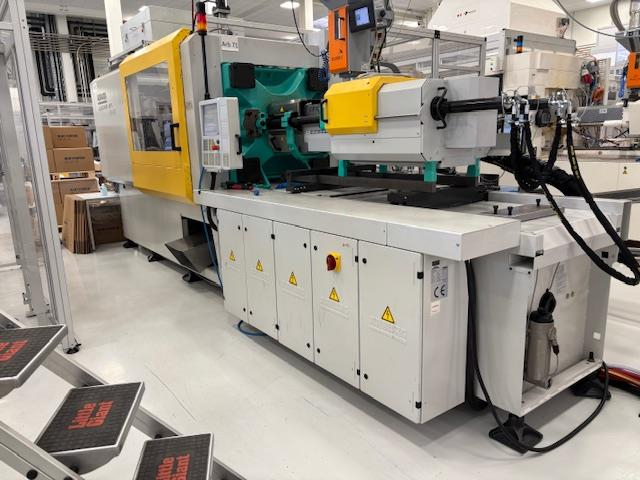

Used ARBURG Allrounder 630 S 2500-800 injection molding machine.
This machine offers an excellent blend of performance and precision with a clamping force of 2500 kN and an injection unit of 800.
Perfect for demanding production requirements and in impeccable condition.
Take advantage of this opportunity to enhance your production capacity.

Contact us for more details and secure this reliable machine!

technical data clamping unit
clamping force:    2500    kN
distance between tie-bars h x v:    630 x 630    mm
of mould plates h x v:    900 x 900    mm
min. mould height:    300    mm
max. mould height:    700    mm
max. open daylight:    1300    mm
opening stroke:    600    mm
ejector stroke:    90    mm
ejector force:    225    kN
centering diameter of moving platen:    160    mm
centering diameter of fixed platen:    160    mm
weight of mould:    3800    kg

technical data injection unit
screw diameter:    45    mm
swept volume:    318    ccm
injection pressure:    2470    bar
screw length:    22    l/d
screw stroke:    200    mm
screw speed:    60    min
screw torque:    1000    N
plasticising rate:    242    g/s PS
injection rate into the open:    291    g/s PS
number of heating zones:    7
nozzle stroke:    400    mm

measures & weight
measures of machine l x w x h:    6.12m x 1.94m x 2.4m
total weight:    12230KG

equipment included
screen text german
CEE-socket 16A
complact flash drive
core pulling hydraulically 2x
core pulling pneum. 3 x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
machine without material hopper
Anti vibration mounts
mould heating 12x

technical data robot-system
handling type:    Linearroboter
manufacture:    Arburg
controller:    Multilift
year of construction:    2012
X axis:    400    mm
Z axis:    1400    mm
C axis rotation:    90°
total weight:    450    kg
