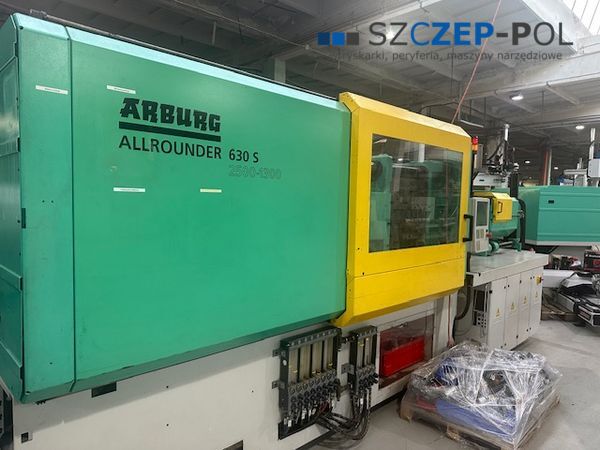

Arburg 630S 2500-1300 Eco injection molding machine with Sepro Industrial Robot Sdr 22S, 250 tons

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Arburg 630S 2500-1300 ECO injection molding machine with Sepro Industrial Robot SDR 22S robot
Year of production: 2008
Injection elements:
Screw diameter: 55 mm
Injection weight: 521 g
Injection pressure: 2380 bar
Injection volume: 570 ccm
Closing elements:
Closing force: 250 t
Clearance between columns: 630x630 mm
Max table plate dimensions: 900x900 mm
Ejector: hydraulic
Closing system: hydraulic
Control:
SELOGICA - touch screen (with the possibility of translation into Polish)
Additional equipment:
Euromap 67
Robot interface
Air valve x 4
Hydraulic core string x 2
Hot runner control x 15
Reinforced injection system - bimetal
The machine has a battery (nitrogen cylinder) - nitrogen charging for fast operation
ECO - the machine has a minimum mold height adjustment system

Robot - Sepro Industrial Robot SDR 22S
Year of production: 2016
4-axis robot: X, Y, Z axes driven by servomotors (electric), C axis - pneumatic
Travel in axes: X-1500, Y-2200, Z-800
Vacuum x 2
Grippers x 2
Touchscreen control panel
Robot base (adapter), safety cage, conveyor belt
Purchase of a robot and conveyor belt for an additional fee
Dimensions:
Weight: 12510 kg
Length/Width/Height: 6.57x1.76x2.46 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
