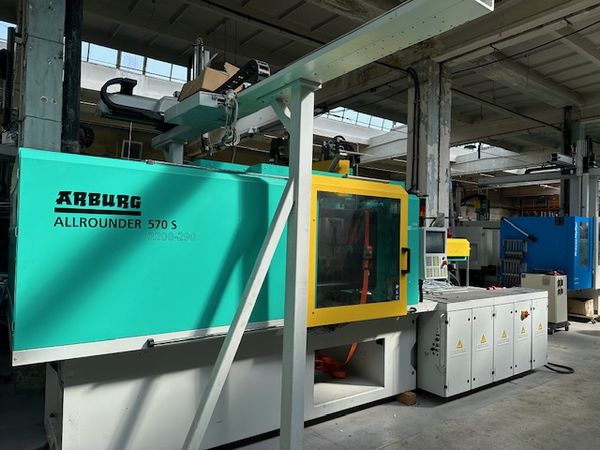

Arburg 570S 2200-290/100/100 / Production line with Wittmann W823 robot, 220t, 2016

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Arburg 570S 2200-290/100/100 / Production line with Wittmann W823 robot / Operating hours: 20,499 h in automatic mode
Year of production: 2016

Description:

Injection elements:
Screw diameter: 35 mm
Injection weight: 132 g
Injection pressure: 2000 bar
Injection volume: 144 cc

Closure elements:
Closing force: 220 t
Clearance between columns: 570x570 mm
Table plate dimensions max: 795x795 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA - touch screen (with the possibility of translation into Polish)

Additional equipment:
3-component, high-speed injection molding machine
Very good technical condition
Operating hours: 20,499 h in automatic mode
Euromap 67
Robot interface
Air valve x 6
Hot runner control
Hydraulic, needle core string controlled by a proportional valve x 4
Reinforced injection system - bimetal
Proportional valve on the injection system - precise injection
The machine has two batteries (nitrogen cylinders) - nitrogen charging for fast work
Parallel movements
Screw diameter in a vertical arrangement ⌀25 mm - 45 g/PS
Screw diameter in the side arrangement ⌀25 mm - 45 g/PS

Wittmann W823 robot
Year of production: 2015
5-axis robot: X, Y (telescopic), Z axes driven by servo motors (electric); C axis and A movement
Crossings on axes: X-550, Y-1400, Z-3500
Touch control panel
Security package
Robot base (adapter), conveyor belt, safety cage
Purchase of the robot and conveyor belt for an additional fee

Dimensions:
Weight: 10830 kg
Length/Width/Height: 5.53x1.77x3.29 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
We are Europe's leading supplier of used machines for plastics processing: injection molding machines, peripherals and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING possible! At the client's request, we can help in organizing leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in operating the selected machine
FREE: loading of devices after sale
