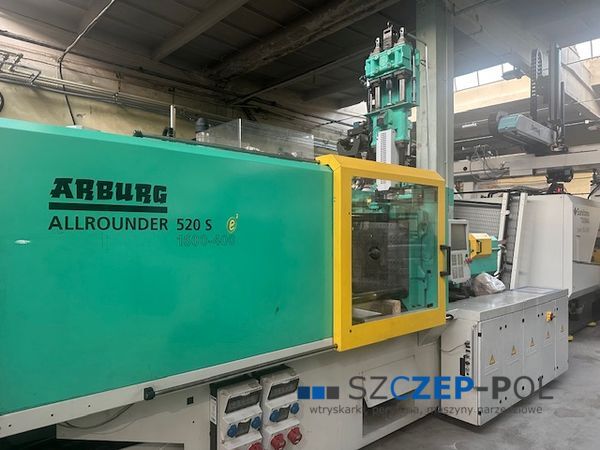

Arburg 520S 1600-400/170 e² injection molding machine with Geiger robot, 160 tons, 2012

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Arburg 520S 1600-400/170 e² with Geiger robot
Year of production: 2012
Injection elements:
Screw diameter: 35 mm
Injection weight: 141 g
Injection pressure: 2500 bar
Injection volume: 154 ccm
Closing elements:
Closing force: 160 t
Clearance between columns: 520x520 mm
Max table plate dimensions: 695x695 mm
Ejector: hydraulic
Closing system: hydraulic
Control:
SELOGICA - touch screen (with the possibility of translation into Polish)
Additional equipment:
Two-unit injection molding machine with a rotary table and a Geiger robot
Very good technical condition
Hybrid machine: energy-saving, very quiet
Euromap 67
Robot interface
Air valve x 4
Hydraulic core string x 5
Hot runner control x 12
Reinforced injection systems - bimetal
The machine has two accumulators (nitrogen cylinders) - nitrogen charging for fast operation
Parallel movements
Vertical screw diameter: ⌀30 mm - 77 g/PS
Built-in Arburg conveyor belt and sorting flap
Original Weber rotary table, very precise table - electrically driven
Purchase of a rotary table and robot for an additional fee
Dimensions:
Weight: 8140 kg
Length/Width/Height: 4.81x1.84x3.45 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
