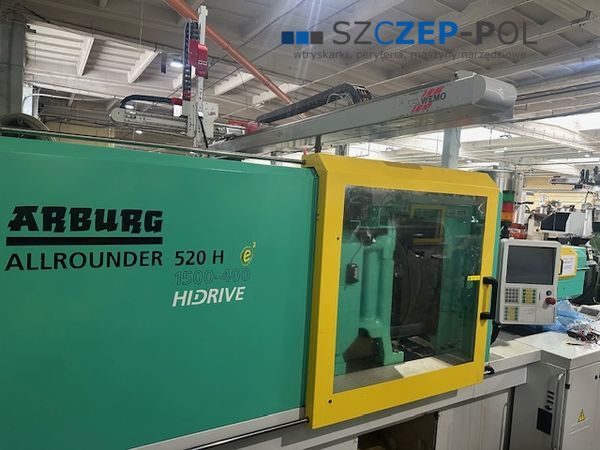

Arburg 520H 1500-400 e² injection molding machine / Hybrid machine

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Arburg 520H 1500-400 e² / Hybrid machine
Year of production: 2011
Description:
Injection elements:
Screw diameter: 40 mm
Injection weight: 184 g
Injection pressure: 2000 bar
Injection volume: 201 ccm
Closing elements:
Closing force: 150 t
Clearance between columns: 520x520 mm
Max table plate dimensions: 695x695 mm
Ejector: electric
Closing system: knee
Control:
SELOGICA - touch screen (with the possibility of translation into Polish)
Additional equipment:
Hybrid machine: energy-saving, very quiet
Euromap 67
Robot interface
Core string control
Hot runner control x 8
Reinforced injection system - bimetal
The main motor in the machine - servo motor controlled by an inverter - energy saving
Injection system driven by a servomotor controlled by an inverter
The machine has a battery (nitrogen cylinder) - nitrogen charging for fast operation
Central lubrication system
Parallel movements
Priamus sensor - mold pressure control
Dimensions:
Weight: 6010 kg
Length/Width/Height: 4.67x1.56x2.21 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
All injection molding machines and peripherals are commissioned by our service technicians before sale.
You can watch a video of the technical tests of the selected machine or take part in live technical tests at our company in Łódź.
LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
