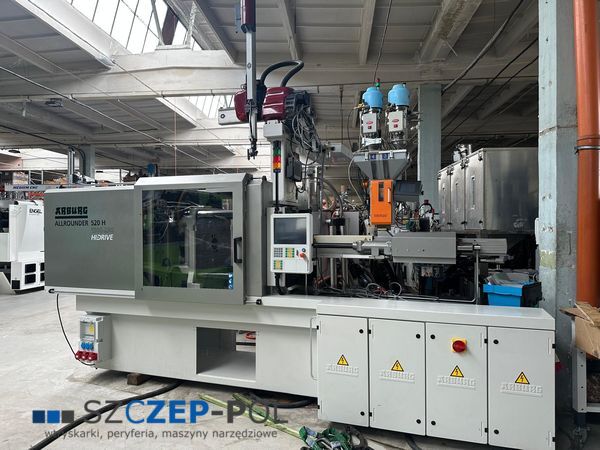

Arburg 520H 1500-290 e² Injection Moulding Machine - hybrid machine, 150T, 2016

SZCZEP-POL
Sale of injection moulding machines and peripheral equipment

Type: Arburg 520H 1500-290 e² / hybrid machine / production line with Wittmann W818 robot / operating hours: 21,588 h in automatic mode
Year of manufacture: 2016

Description:

Injection unit:
Screw diameter: 30 mm
Shot weight: 97 g
Injection pressure: 2500 bar
Shot volume: 106 ccm

Clamping unit:
Clamping force: 150 t
Distance between tie bars: 520x520 mm
Max platen dimensions: 695x695 mm
Ejector: electric
Clamping system: toggle

Control:
SELOGICA - touchscreen (with Polish language translation option)

Additional equipment:
Very good technical condition
Hybrid machine: energy-saving, high-speed, very quiet
Operating hours: 21,588 h in automatic mode
Euromap 67
Robot interface
Air valve x 5
Hydraulic core control
Air core pull x 3
Reinforced injection unit - bimetal
Main motor in the machine - servomotor controlled by an inverter - energy saving
Injection unit driven by a servomotor controlled by an inverter
The machine is equipped with an accumulator (nitrogen bottle) - nitrogen charging for high-speed operation
Central lubrication system
Automatic mould height adjustment
Parallel movements

Wittmann W818 robot
Year of manufacture: 2016
4-axis robot: X, Y, Z axes driven by servomotors (electric), C axis - pneumatic
Axis travel: X-420, Y-1000, Z-1500
Touchscreen control panel
Safety package
Robot base (adapter), conveyor with electric height adjustment, safety cage
Robot and conveyor available at extra cost

Dimensions:
Weight: 6250 kg
Length/Width/Height: 4.45x1.56x2.21 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request
