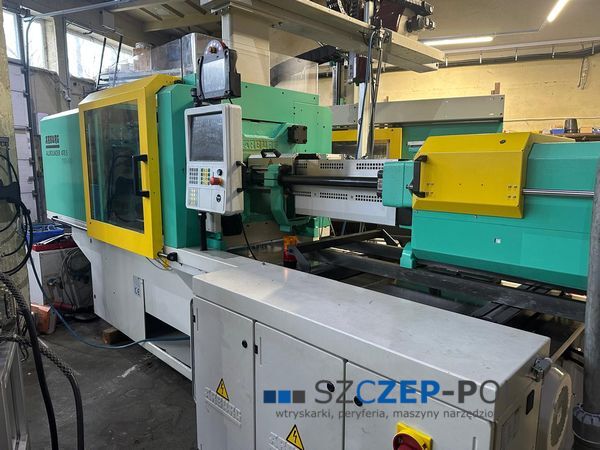

Arburg 470S 1100-400 injection molding machine with Wittmann W711 robot, 2008, 110 tons

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Arburg 470S 1100-400 injection molding machine with Wittmann W711 robot
Year of production: 2008
Description:
Injection elements:
Screw diameter: 40 mm
Injection weight: 184 g
Injection pressure: 2000 bar
Injection volume: 201 ccm
Closing elements:
Closing force: 110 t
Clearance between columns: 470x470 mm
Max table plate dimensions: 637x637 mm
Ejector: hydraulic
Closing system: hydraulic
Control:
SELOGICA - touch screen (with the possibility of translation into Polish)
Additional equipment:
Euromap 67
Robot interface
Air valve x 2
Hydraulic core string x 1
Hot runner control x 8
Reinforced injection system - bimetal
Moog proportional valve on the injection system - precise injection
Conveyor belt integrated with the machine control
Built-in sorting flap
It is possible to change the screw diameter

Wittmann W711 Robot
Year of production: 2008
4-axis robot: X, Y, Z axes driven by servomotors (electric); C axis - pneumatic
Travel in axes: X-420, Y-1200, Z-2000
Touchscreen control panel
Robot base (adapter)
Purchasing a robot for an additional fee
Dimensions:
Weight: 5200 kg
Length/Width/Height: 4.56x1.52x2.13 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
All injection molding machines and peripherals are commissioned by our service technicians before sale.
You can watch a video of the technical tests of the selected machine or take part in live technical tests at our company in Łódź.
LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
