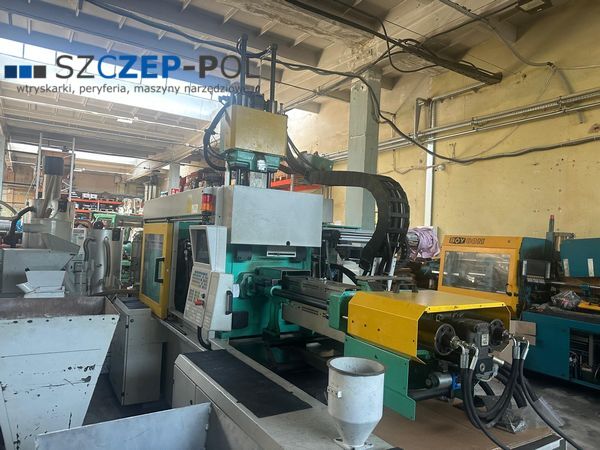

Arburg 420C 1000-350/150 injection molding machine, 100T, 2009

SZCZEP-POL
Sale of injection molding machines and peripheral equipment

Type: Arburg 420C 1000-350/150 / production line with Arburg Multilift H side-entry robot / dual-injection-unit machine
Year of manufacture: 2009

Description:

Injection unit:
Screw diameter: 45 mm
Shot weight: 210 g
Injection pressure: 1670 bar
Shot volume: 230 ccm

Clamping unit:
Clamping force: 100 t
Distance between tie bars: 420x420 mm
Max platen dimensions: 570x570 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA (with the option of translation into Polish)

Additional equipment:
Production line with Arburg Multilift H side-entry robot
Dual-injection-unit machine with rotary table
Air valve control
Hydraulic core pull x 2
Hot runner control
Armored injection units - bimetal
Proportional valves on the injection units - precise injection
Vertical injection unit - screw diameter: ⌀30 mm - 71 g/PS
Rotary table available at an additional cost

Arburg Multilift H side-entry robot
Year of manufacture: 2009
5-axis robot: Z axis driven by servomotor (electric); X, Y, B, C axes pneumatic
Safety package
Robot base (adapter), conveyor, safety cage
Robot and conveyor available at an additional cost

Dimensions:
Weight: 5210 kg

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastic processing machinery: injection molding machines, peripheral equipment, and machine tools.
All equipment offered by our company is located in our warehouses in Łódź.
All injection molding machines and peripheral equipment are started up before sale by our service technicians.
It is possible to watch a video of the technical tests of the selected machine or take part in live technical trials at our company in Łódź.
