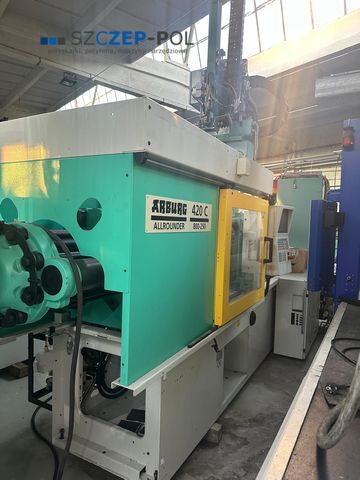

Arburg 420C 800-250/80t injection molding machine, 2004

SZCZEP-POL
Sales of injection molding machines and peripherals

Type: Arburg 420C 800-250
Year of production: 2004

Injection elements:
Screw diameter: 30 mm
Injection weight: 89 g
Injection pressure: 2470 bar
Injection volume: 106 ccm
Closing elements:
Closing force: 80 t
Clearance between columns: 420x420 mm
Max table plate dimensions: 570x570 mm
Ejector: hydraulic
Closing system: hydraulic
Control:
SELOGICA (with the possibility of translation into Polish)
Additional equipment:
Euromap 67
Robot interface
Hydraulic core string x 1
Reinforced injection system - bimetal
Dimensions:
Weight: 3180 kg
Length/Width/Height: 4.30x1.64x2.08 m
Power supply:
Pump/Motor: 15 kW
Heaters: 6.5 kW
Total: 21.5 kW
Price: on request

We invite you to see the machine in operation in Łódź.
We offer all the additional peripheral equipment necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
