Arburg 370H 600-290 e² / 60t, 2012

SZCZEP-POL
Sales of injection molding machines and peripherals

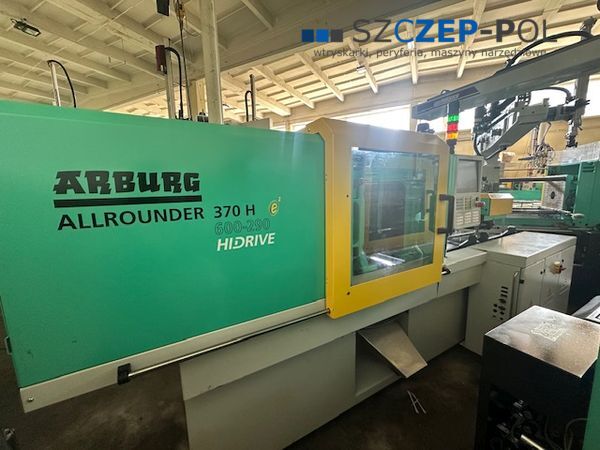

Type: Arburg 370H 600-290 e² / Hybrid machine / 60t, 2012
Year of production: 2012
Location: Lodz

Injection elements:
Screw diameter: 35 mm
Injection weight: 132 g
Injection pressure: 2000 bar
Injection volume: 144 ccm

Closing elements:
Closing force: 60 t
Clearance between columns: 370x370 mm
Max table plate dimensions: 510x510 mm
Ejector: electric
Closing system: knee

Control:
SELOGICA - touch screen (with the possibility of translation into Polish)

Additional equipment:
Hybrid machine: energy-saving, fast-running, very quiet
Euromap 67
Robot interface
Air valve x 2
Hydraulic core string x 1
Reinforced injection system - bimetal
The main motor in the machine - servo motor controlled by an inverter - energy saving
Injection system driven by a servomotor controlled by an inverter
Proportional valve on the injection system - precise injection
Automatic mold height adjustment
Central lubrication system
The machine has a battery (nitrogen cylinder) - nitrogen charging for fast operation
Built-in sorting flap

Dimensions:
Weight: 3350 kg
Length/Width/Height: 4.00x1.46x2.04 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request

We invite you to see the machine in operation in Łódź.
We offer all the additional peripheral equipment necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
