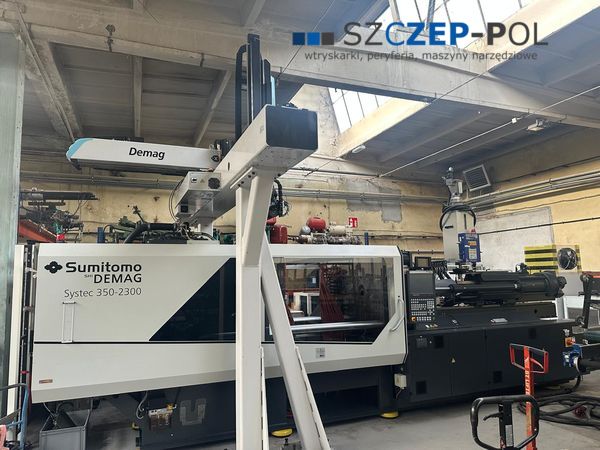

Sumitomo Demag Systec 350/720-2300/ Production line with Wittmann-Demag DR853 robot

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Sumitomo Demag Systec 350/720-2300/ Production line with Wittmann-Demag DR853 robot
Year of production: 2015
Description:
Injection elements:
Screw diameter: 70 mm
Injection weight: 1103 g
Injection pressure: 1877 bar
Injection volume: 1212 ccm
Closing elements:
Closing force: 350 t
Clearance between columns: 720x720 mm
Max table plate dimensions: 1040x1060 mm
Ejector: hydraulic
Closing system: knee
Control:
NC5 (with the possibility of translation into Polish)
Additional equipment:
Euromap 67
Robot interface
Air valve control
Hot runner control x 5
Reinforced injection system - bimetal
Moog proportional valve on the injection system - precise injection
Parallel movements
Central lubrication system
3 variable displacement hydraulic pumps
Built-in printer
The machine is regularly serviced by an authorized Sumitomo Demag service center.

Wittmann-Demag DR853 robot
Year of production: 2016
6-axis robot: X, Y-telescopic, Z, B, C axes driven by servo motors (electric)
Travel in axes: X-1200, Y-2400, Z-4000
Touchscreen control panel
Safety package
Robot base (adapter), safety cage, conveyor belt
Purchase of a robot and conveyor belt for an additional fee
Weight: 15750 kg
Length/Width/Height: 8.26x2.01x2.27 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We invite you to see the machine in operation in Łódź.
We offer all the additional peripheral equipment necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
