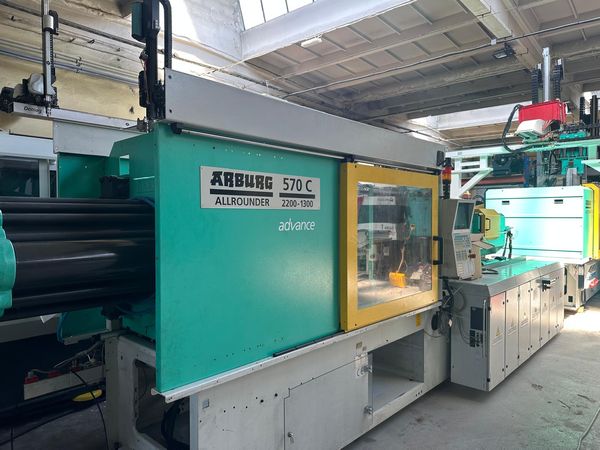

Arburg 570C 2200-1300 injection molding machine - hybrid machine, 220 t, 2006

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Arburg 570C 2200-1300 / hybrid machine
Year of manufacture: 2006

Description:
Injection unit:
Screw diameter: 55 mm
Shot weight: 469 g
Injection pressure: 2380 bar
Shot volume: 558 ccm
Clamping unit:

Clamping force: 220 t
Distance between tie bars: 570x570 mm
Maximum platen dimensions: 795x795 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
SELOGICA (with Polish language option)

Additional equipment:
Hybrid machine: energy-efficient, high-speed, very quiet
Euromap 67
Robot interface
Air valve x 4
Hydraulic core pull x 2
Hot runner control x 8
Armored injection unit - bimetal
Main motor in the machine - servomotor controlled by an inverter - energy saving
Injection unit driven by a servomotor controlled by an inverter

Dimensions:
Weight: 9300 kg
Length/Width/Height: 5.16x2.06x2.39 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastic processing machines: injection molding machines, peripherals, and machine tools.
All equipment offered by our company is located in our warehouses in Łódź.
All injection molding machines and peripheral equipment are started up before sale by our service technicians.
It is possible to watch a video of the technical tests of the selected machine or take part in live technical trials at our company in Łódź.
