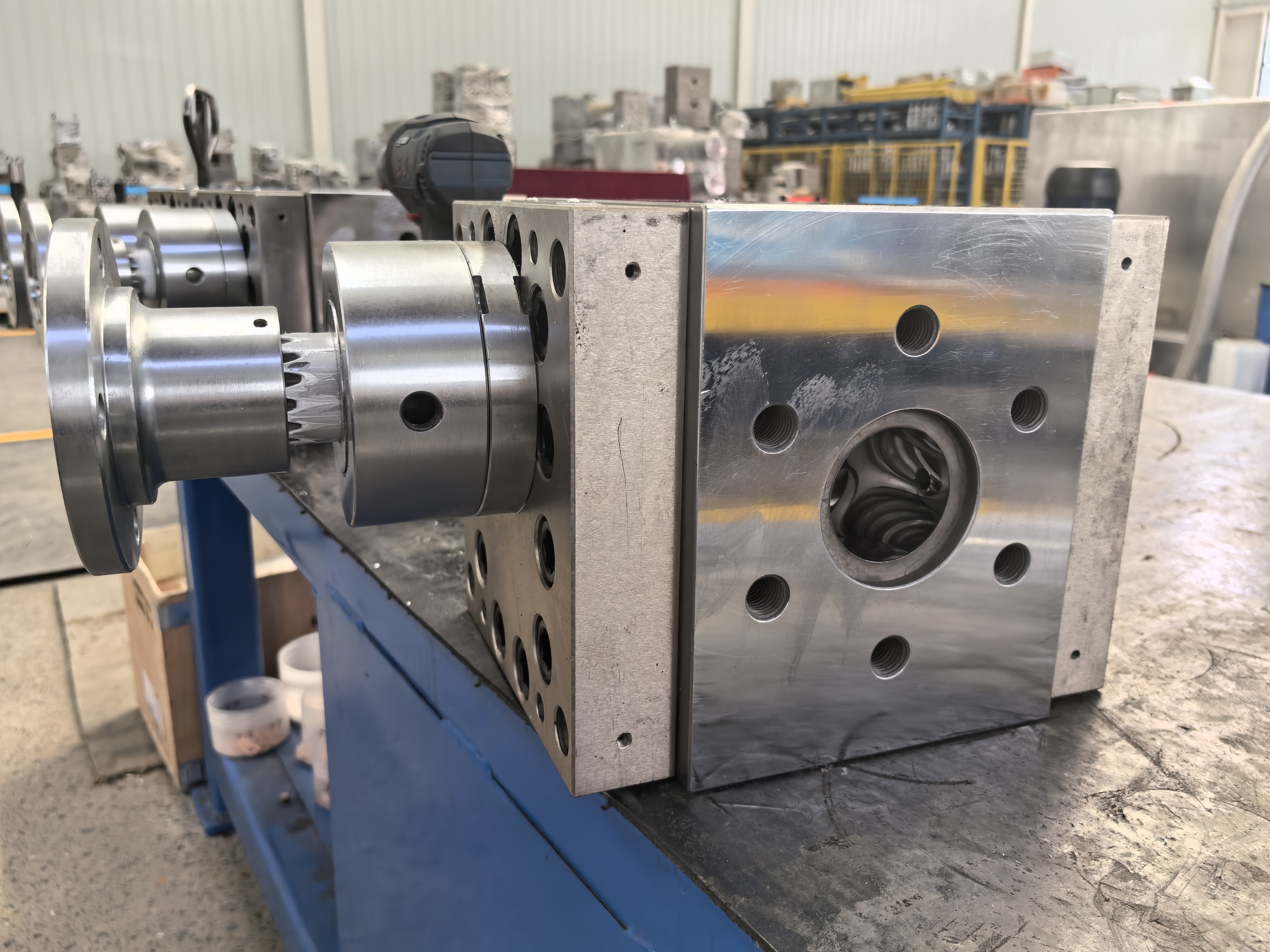

Polymer pump / extruder pump / gear pump

Polymer pump / extruder pump / gear pump

Optimizing plastic extrusion processes - unlocking the potential of an extruder gear pump / metering melt pump in sheet, pipe, film, and tube production lines.

A melt pump can also be referred to as a polymer pump, extrusion gear pump, or metering pump.
It is used in various plastic extrusion lines, including sheet, film, tube, cable, pipe, and profile production lines.
Its main function is to control melt flow and regulate pressure to achieve consistent product quality.

A complete melt pump set includes the melt pump body, drive system, and control system. The drive system consists of a motor and reducer that drive the pump shaft rotation. The control system is composed of electrical components and is mainly used to control pump speed, temperature, and pressure.

An extruder gear pump is used with the extruder for transporting and metering high-temperature, high-viscosity polymer melt. At the same time, it increases and stabilizes the pressure of the material from the extruder and then transports it to the die. Its stabilizing and metering performance for various plastics is superior to standard extrusion alone.

Melt pumps are widely used in extrusion molding in the plastics, resin, and rubber industries. They are essential parts of extrusion equipment used in granulation, film, pipe, plate, sheet, and other applications, and can be applied for PP, PS, PET, PVC, ABS, PE, PA, rubber, etc.

Pump parameters
Pump models: 0.5CC-2000CC
Pump material: carbon steel and stainless steel 304/316 / other required tool steel
Pump heating method: heater or conduction oil heating
Working temperature: ≤400 ℃
Cleaning temperature: ≤450 ℃
Input pressure: ≤12 MPa
Output pressure: ≤45 MPa
Max pressure difference: ≤25 MPa
Material viscosity: 40000 Pas
