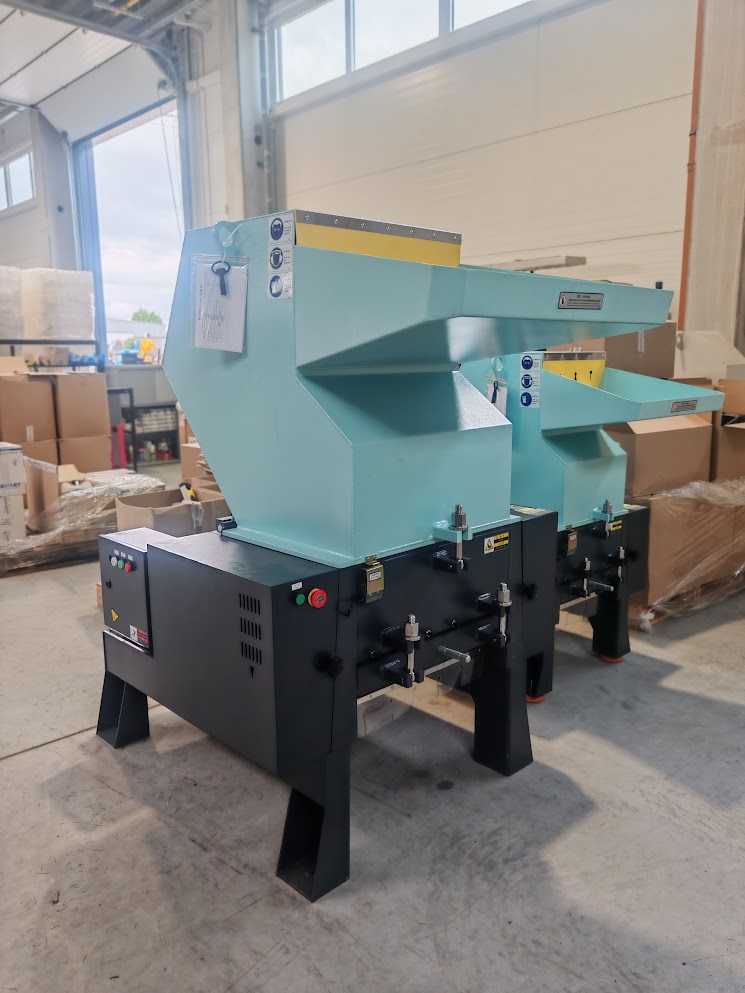

Plastic granulator mill SG-600F 15 kW with drawer

High-speed central granulator SG-600F for grinding plastics.

The SG series mill is economical and practical. It is used for crushing various three-dimensional components made of soft or hard plastics, including production rejects and waste.

The result of the grinding process is material reduced into fractions, which enables further processing.
A fast and efficient crushing process plays a key role in the recycling, recovery, and disposal of plastics.

Features of the SG series mill

✔ Steel body - aesthetic, economical, and practical.
✔ The row-type knife arrangement reduces material friction on both sides, which limits heat generation.
✔ The motor is equipped with overload protection and a power lockout system.
✔ Three types of knife arrangements allow selection depending on the material type, making it easier to cut various plastics.
✔ Knife adjustment allows repeated sharpening after wear, ensuring long service life while maintaining high efficiency.
✔ The design with separate feed throat, grinding chamber body, and screen frame assemblies facilitates replacement and cleaning access.
✔ The shredding method ensures noise reduction.
✔ Small mills are equipped with wheels, while large ones have vibration-isolating feet.
✔ Some SG series models feature water-cooled bearing housings, which improve bearing operating conditions and extend service life.

- capacity up to 450 kg/h
- chamber dimensions 320 x 600 mm
- 15 kW motor
- regrind collection drawer
- cascade knife arrangement
- rotating knives 3x6
- stationary knives 2x2
- robust steel construction

The SG-F series consists of high-speed mills designed for central grinding of production waste. They are used with plastics processing machines such as injection molding machines and extruders.

- Powerful and durable mills with high power and torque.
- Ideal for grinding plastics such as PP, PS, PVC, PA, lumps, and rubber.
- Durable stainless steel housing, bearing lubrication system, and adjustable knives.
- Screen and granulate collection bin included.
- Emergency safety switch system and a mechanism preventing drive overload.

We offer mills in 4 kW, 5.5 kW, 7.5 kW, 11 kW, 15 kW, 22 kW, 30 kW, and 45 kW versions.

Slow-speed, medium-speed, and central mills are also available in the standard version, with a regrind drawer or with extraction and dust separator.

All machines come with Polish-language documentation, CE marking, and a declaration of conformity.

Please send inquiries for quotation.
