Mold mounting clamp with movable foot M12, M16, M20, M24

No. 136787
Type of offer::
Selling
Price:
~63,49 EUR / pc
Available quantity:
10 pc
Valid for:
27 days

User:
29_pro
Company:
29PRO
Name and surname:
Łukasz Gałęza
Contact:

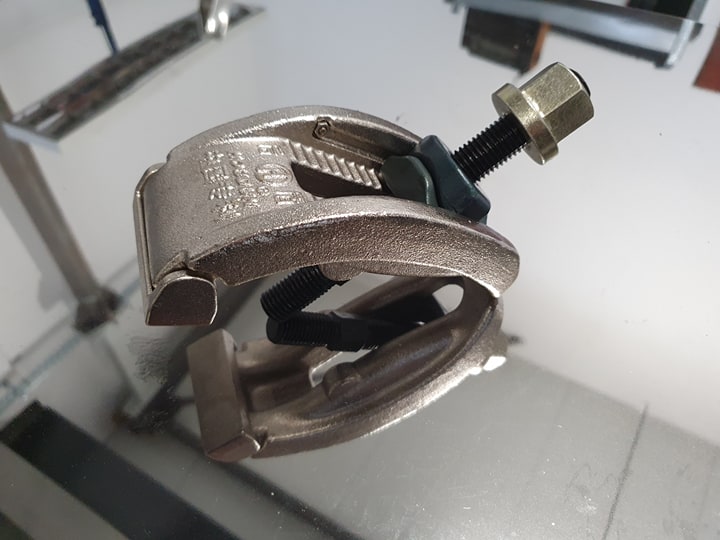

We offer clamps (clamps) for mounting injection molds in sizes M12, M16, M20, M24
The clamps have a movable foot that optimizes the clamp pressure, which significantly reduces the tension on the screw, resulting in less pulling out.

1. M12 clamp, 105mm long
- Screw
- M12 nut
- Weight of 1 pc. 0.56 kg
- Number of pieces in a package 8 pieces - 4.5 kg
- net price 120 PLN

2. M16 clamp, 155mm long
- Screw
- M16 nut
- Weight of 1 pc. 1.60 kg
- Number of pieces in a package 8 pieces - 12.9 kg
- Net price 170 PLN

3. M20 clamp, 185mm long
- Screw
- M20 nut
- Weight of 1 pc. 2.5 kg
- Number of pieces in a package 8 pieces - 20 kg
- Net price 270 PLN

4. M24 clamp, 220mm long
- Screw
- M24 nut
- Weight of 1 pc. 5.1 kg
- Number of pieces in a package 8 pieces - 41 kg
- Net price 340 PLN

The price in the advertisement is for the M20 clamp

I invite you to contact me and submit inquiries

Lukasz Galaza
793 146 388
