Hydraulic dual-channel screen changer fi 250 - continuous operation
No. 138878
Technical condition: used, fully operational.
Availability: immediate.

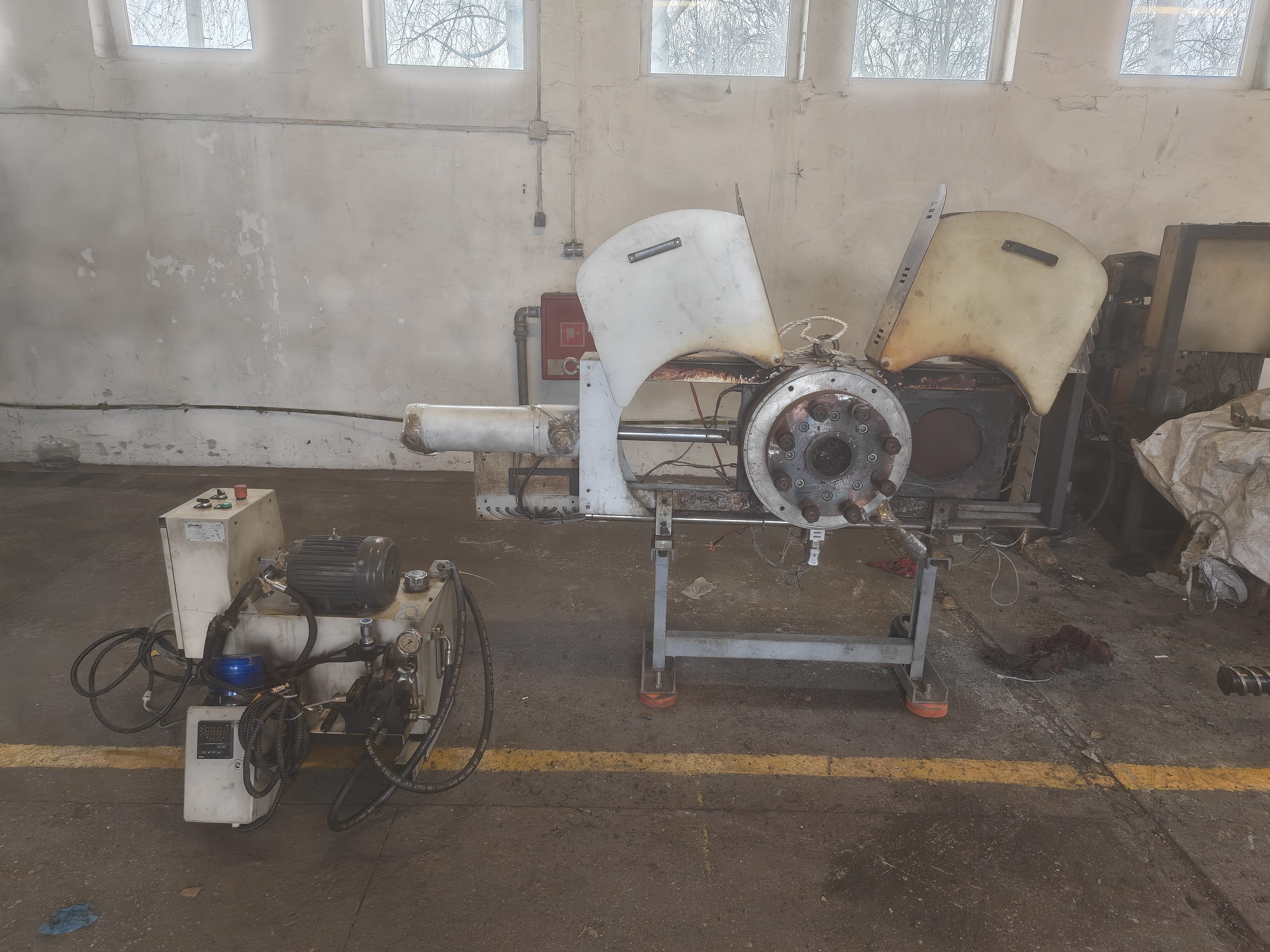

1. Device description
The offered item is a dual-channel (dual-piston) hydraulic screen changer designed for continuous operation in plastic regranulation or extrusion lines (PE, PP, PS, ABS). The dual-channel design allows filter screens to be replaced without stopping the production line and without fluctuations in melt pressure.
2. Technical specification
• Screen diameter: fi 250 mm
• Operating mode: continuous (non-stop), dual-channel
• Number of heating zones: 4-6
• Throughput: up to 1000 kg/h (depending on the material)
• Body material: high-grade tool steel, heat-treated
3. Set equipment
• Hydraulic power unit (oil): complete station with motor, pump and oil tank.
• Control system: control panel for hydraulic operation and temperature control.
• Heaters: complete set of heaters installed on the device.
• Safety guards: complete set of steel guards.
4. Main advantages
• No downtime: possibility to replace contaminated screens while the machine is operating.
• Large filtration area: ideal for heavily contaminated post-production and post-consumer waste.
5. Sale terms
• Net price: PLN 35,000
• Additional options: possibility to inspect the device, VAT invoice.
