FY-Q2000M Bubble Wrap Production Line with Aluminized Foil Lamination
No. 137263
- Type of offer::
- Selling
- Price:
- 41 000 EUR / pc
- Available quantity:
- 1 pc
- Valid for:
- 27 days
-
- User:
- isobooster
- Company:
- Anar Anna Bartoszewska
- Name and surname:
- Jarosław Bartoszewski
- Contact:
Condition : In constant use, first owner. Reliable, well-designed, trouble-free line.
Year of production: 2007
Launch: 2008
Link to photos and video
Main specifications:
Model: FY-Q2000M
Maximum foil width: 2030 mm
Maximum capacity: 250 kg/h
Line speed: 1100 m/h
Actual energy consumption: 90 kW
Installed power: 165 kW
Machine dimensions: width 8 m × length 9 m
Weight: 8400 kg
CE marking: Yes
Configuration and features:

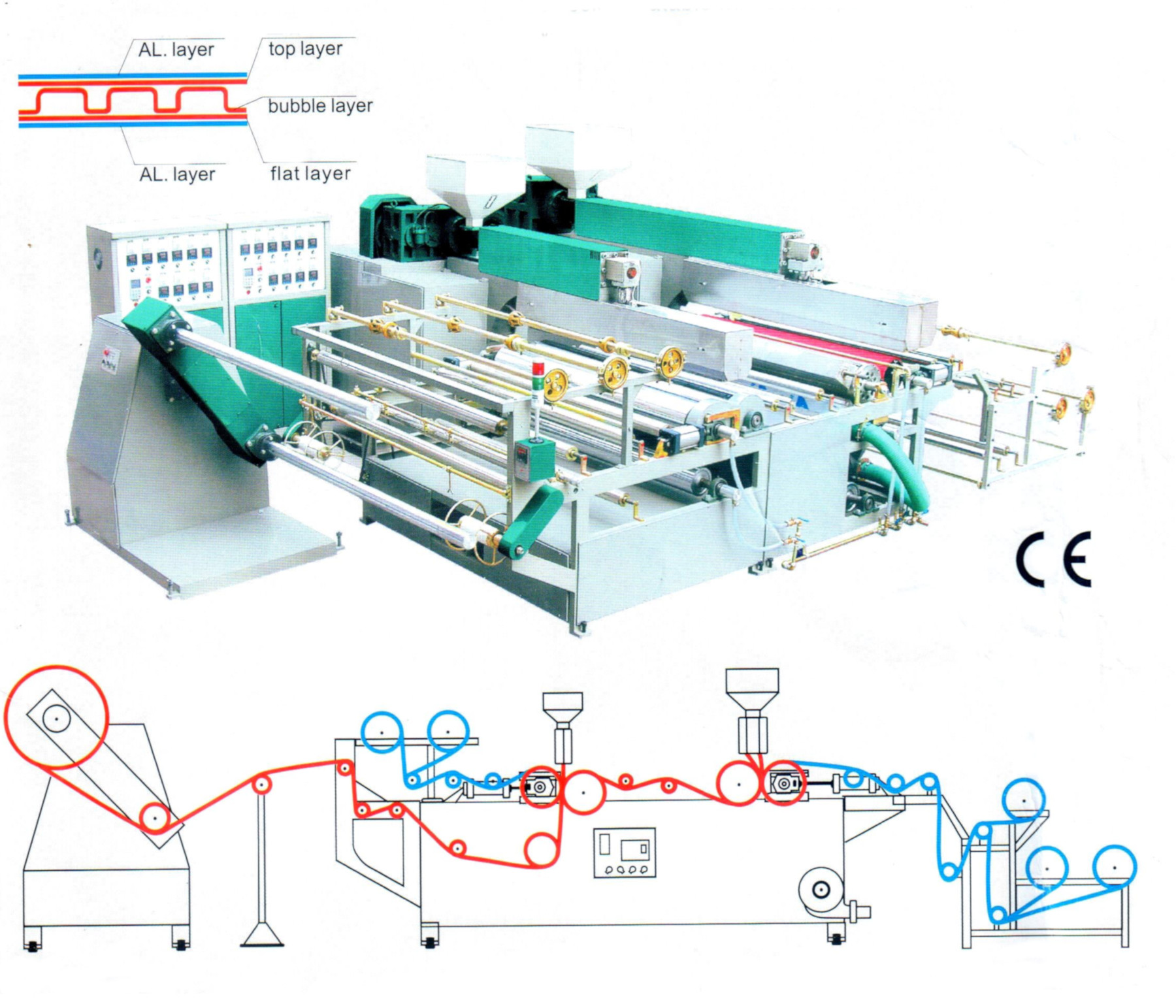

Two extruders; 2-5 layers of foil with an outer layer of aluminized foil
Production capacity:
- 4- and 5-layer laminates with pure aluminum foil, aluminized foil and EPE foam
- 2- and 3-layer bubble wrap
Bubble diameters: φ6–φ32 mm (with replaceable forming rollers)
The set includes 2 forming rollers:
- Roll 1: bubbles Ø10 mm × height 4 mm
- Roll 2: bubbles Ø18 mm × height 6 mm
Special rotating winder for easy operation
Standard water and air cooling systems
Single-screw extruders
Processed materials:
LDPE, LLDPE, recycled PE
