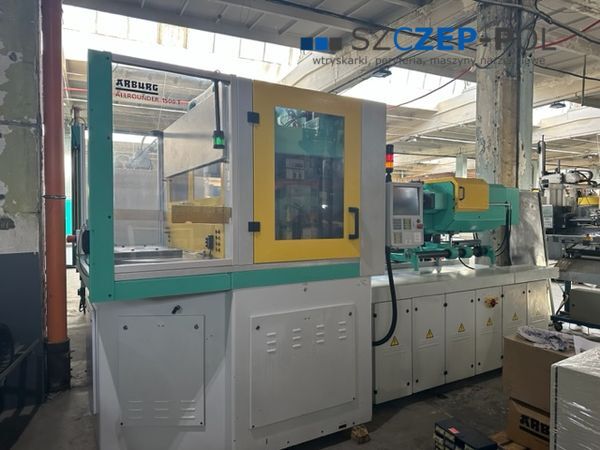

Arburg 1500T injection molding machine 3200-1300 e² / Hybrid machine with rotary table, 320t, 2011

SZCZEP-POL
Sale of injection molding machines and peripherals

Type: Arburg 1500T 3200-1300 e² / Hybrid machine with rotary table
Year of production: 2011

Description:

Injection elements:
Screw diameter: 60 mm
Injection weight: 607 g
Injection pressure: 2000 bar
Injection volume: 664 cc

Closure elements:
Closing force: 320 t
Clearance between columns: 0x0 mm
Table plate dimensions max: 1510 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA - touch screen (with the possibility of translation into Polish)

Additional equipment:
Hybrid machine: energy-saving, fast, very quiet
Operating hours: approx. 30,000 in automatic mode
Euromap 67
Robot interface
Air valve control
Hydraulic core string x 3
Hot runner control x 13
Reinforced injection system - bimetal
The main engine in the machine - a servomotor controlled by an inverter
Very precise rotary table, driven by a servomotor, controlled by an inverter
Rotary table diameter: 1500 mm
Horizontal injection system with automatic height adjustment
Self-closing nozzle
Primus sensor - pressure control in the mold
It is possible to rebuild the injection system so that it works vertically

Dimensions:
Weight: 16080 kg
Length/Width/Height: 4.91x2.12x4.62 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We invite you to present the machine at work in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tooling machines.
