ENGEL automation on show at Chinaplas 2018

viper 20: now even faster

There will also be an Asian premiere for viper linear robots at Chinaplas. The new viper 20 speed offers removal times of well under 1 second. The enhanced servo-electric drive technology and the reduced weight of the robot’s axes are responsible for the step up in performance. Developed for applications with total cycle times of around 4 seconds, the viper 20 speed is mainly used in the medical and packaging sectors, areas in which top-entry robots tend to offer very high flexibility.

The viper 20 speed will demonstrate its impressive performance by handling cups at the trade fair. It will work in tandem with an ENGEL easix articulated robot that will take the cups from a moving conveyor belt and stack them in a magazine. In this application both robots – the viper linear and the easix articulated robot – are integrated into a CC300 control unit. It makes no difference whether the CC300 is controlling linear or rotary axes. The additional movement instructions for the multi-axis robot integrate seamlessly with the graphical interface, which simplifies operation significantly. To allow for simple and fast parameterisation despite the complexity of the overall system, the control unit provides different user levels, from a simple view to a fully object-oriented visualisation of the sequence.10” for easier operationAnother highlight of ENGEL’s Expert Corner on automation will be the new C10 10-inch hand-held unit for robots in the ENGEL series; this will replace the 7-inch units in the C70 series over the course of the year. Visitors to Chinaplas will gain a foretaste of the easier operation of the new hand-held unit, which provides a clearer overview.

c 10 10

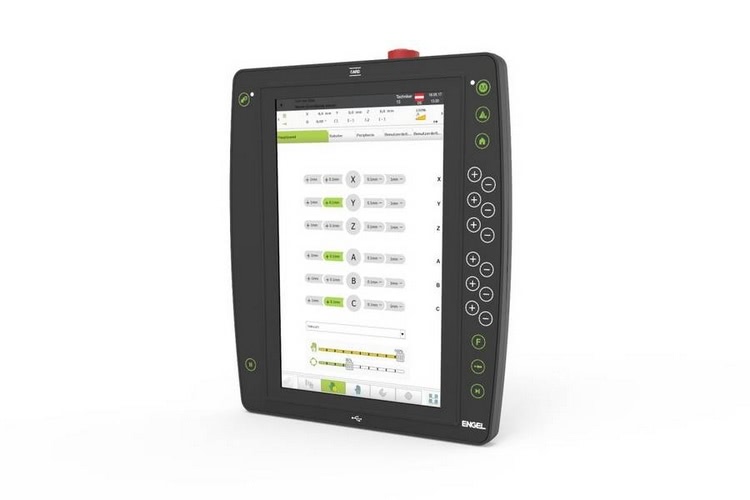

The new C10 10-inch hand-held unit from ENGEL delivers greater clarity and ease of use.

Source: ENGEL
