Pid water thermostat 6kW, 9kW, 12kW

No. 136764

Type of offer::: Selling
Price:: ~2 235 EUR / pallet
Available quantity:: 3 pallet
Valid for:: 25 days
User:: 29_pro
Company:: 29PRO
Name and surname:: Łukasz Gałęza
Contact:

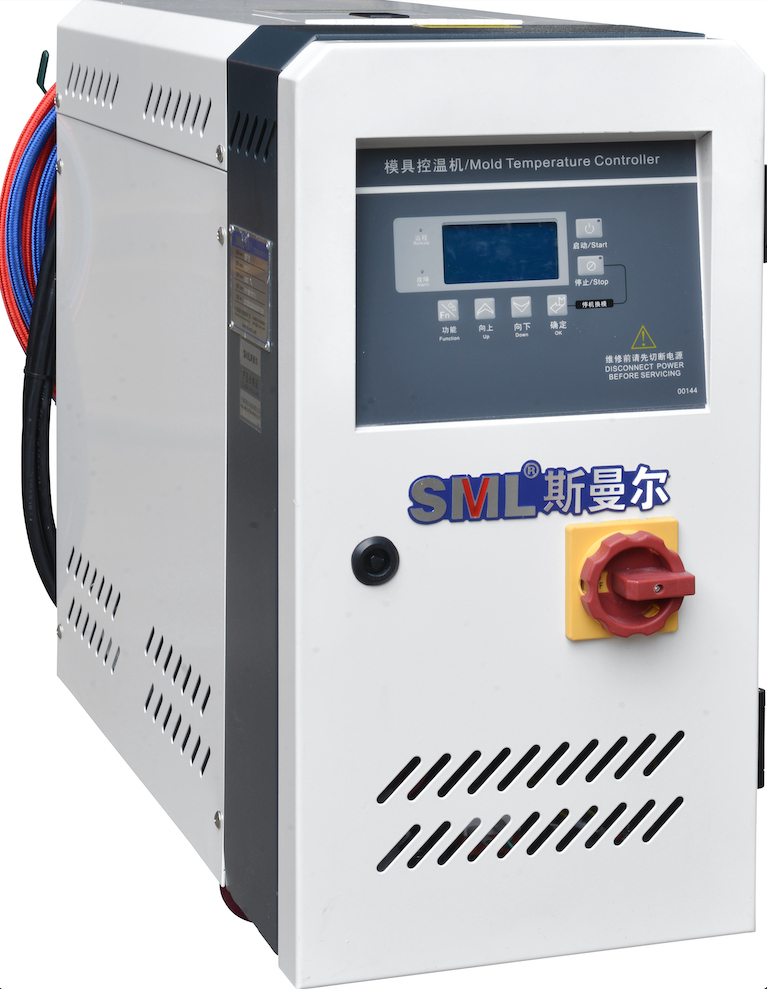

PID Water Thermostat

The PID controlled water thermostat for injection molds is used to precisely maintain the target mold temperature during the plastic injection process. The PID (Proportional-Integral-Derivative) system provides accurate and stable temperature control, minimizing fluctuations and reducing the response time to changes.

The main advantages of using a PID thermostat:

Precise temperature control – improves the quality of molded parts and process repeatability.
Stable mold operation – reduces the risk of deformation or run-off.
Reaching operating temperature faster – shortens production cycle time.
Energy savings – thanks to optimisation of heating and cooling.

This is a key device in processes requiring high precision and stable mold working conditions.

We offer water thermostats from 6 kW to 24kW. This offer applies to a 6kW, 9kW, 12kW thermostat.

Model	Maximum temp. (°C)	Heating power (kW)	Pump power (kW)	Efficiency (l/min)	Medium	Cooling method (cm)	Connector (inches)	Weight (kg)	External dimensions (LxHxW)(mm)
STC-6W	95	6	0.37	45	WATER	Direct	3/8 (2x2)	65	780x260x650
STC-9W	95	9	0.75	56			3/8 (4x2)	68	780x260x650
STC-12W	95	12	1.5	80			3/8 (6x2)	70	780x260x650
