New Ssf 32 injection molding machine - clamping force 320 kN in servo

No. 122932
Type of offer::
Selling
Price:
not specified
Available quantity:
2 pc
Condition:
New
Year:
2020
Manufacturer:
Others
Clamping force [kN]:
320
Total power installed [kW]:
7.1
Valid for:
5 days

User:
technikplast
Company:
Technikplast Michał Wiśniewski
Name and surname:
Michał Wiśniewski
Contact:

Available "on the spot"

Two new SSF 320 injection molding machines

Options:

2 x core

4 x air blow

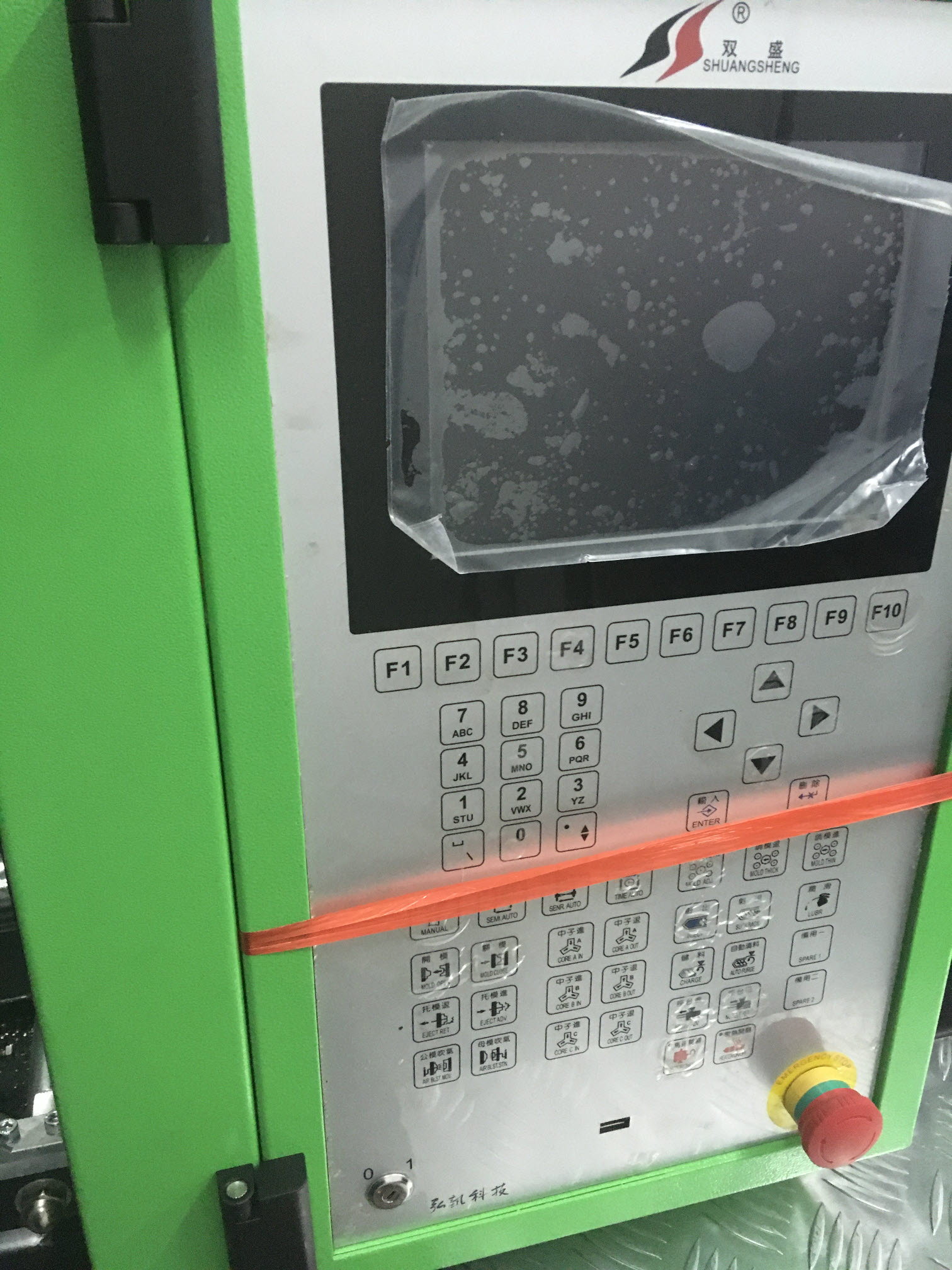

Controls - Techmation

Language - PL, EN, and others


Technical data:

clamping force 32 tons

opening stroke - 155 mm

clearance between the columns - 245 x 195 mm

minimum mold height - 80 mm

maximum height of the mold - 260 mm

ejector force - 13kN

ejector stroke - 40mm

screw diameter - 22 mm

injection weight - 27 g

L / D ratio - 30

injection pressure - 185 bar

injection capacity - 25 g / s

screw rotations - 190 o / min

engine power - 5.5 kW

machine dimensions - 2.8 x, 086 x 1.35 m

maximum pressure in the system - 140 bar

heaters power - 2.6 kW

amount of oil - 85 l

weight - 1 T.
