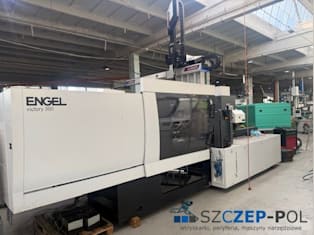

Engel Victory 1050/220 Tech Ecodrive with Engel Viper 20 robot, 220 tons, 2011

SZCZEP-POL
Sales of injection molding machines and peripherals
Type: Engel Victory 1050/220 Tech Ecodrive with Engel Viper 20 robot / Hybrid machine
Year of production: 2011
Description:
Injection elements:
Screw diameter: 50 mm
Injection weight: approx. 395 g
Injection pressure: 2332 bar
Injection volume: 422 ccm
Closing elements:
Closing force: 220 t
Clearance between columns: 0x0 mm
Max table plate dimensions: 880x830 mm
Ejector: hydraulic
Closing system: hydraulic
Control:
CC 200 - touch screen (with the possibility of translation into Polish)
Additional equipment:
Production line with an Engel Viper 20 robot
Very good technical condition
Operating hours: 32,609 h in automatic mode
Tie-bar-less hybrid machine: energy-saving, very quiet
Air valve x 4 on fixed plate side
Hydraulic core string x 2 on fixed plate side
Hydraulic core string x 2 on the moving plate side
Hot runner control x 12
Bimetal injection system - resistant to abrasion and corrosion
The main motor in the machine - servo motor controlled by an inverter - energy saving
Proportional valve on the injection system - precise injection

Engel Viper 20 Robot
Year of production: 2011
6-axis robot: X, Y, Z, B axes (rotation) driven by servomotors (electric), A and C axes - pneumatic
Safety package
Robot base (adapter), conveyor belt, safety cage by Engel
Purchase of a robot and conveyor belt for an additional fee

Dimensions:
Weight: 12200 kg
Length/Width/Height: 5.66x1.88x2.30 m
Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are a leading European supplier of used plastics processing machinery: injection molding machines and peripherals, as well as tooling machines.
All devices offered by our company are located in our warehouses in Łódź.
All injection molding machines and peripherals are commissioned by our service technicians before sale.
You can watch a video of the technical tests of the selected machine or take part in live technical tests at our company in Łódź.
LEASING OPPORTUNITY! At the client's request, we can assist in arranging a simplified leasing arrangement through the leasing companies we work with.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
