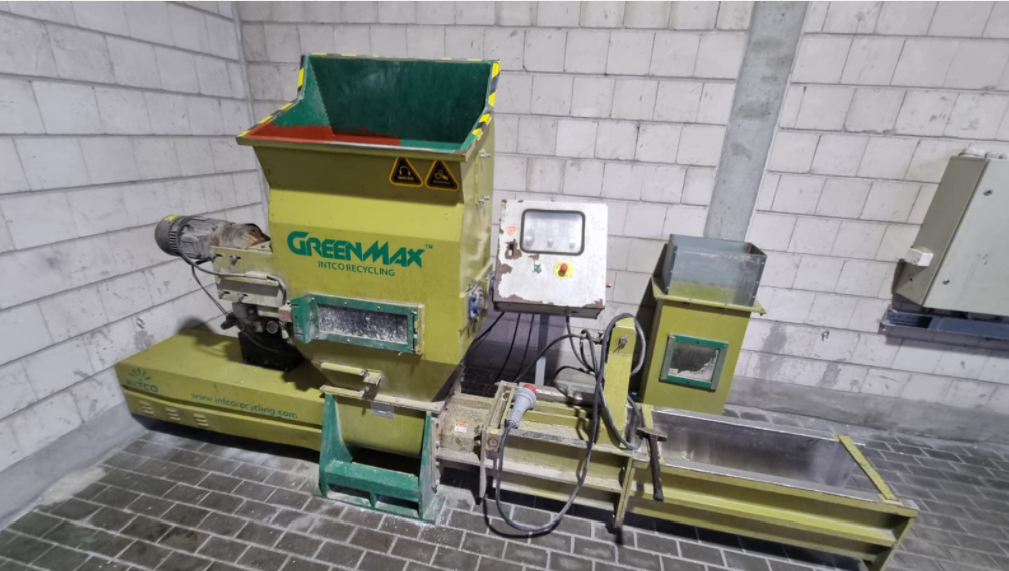

EPS briquetting machine GreenMax Apolo C100, 2014

Cold EPS compactor GreenMax Apolo C100 - screw replaced with a new one in September 2019.
- Nominal capacity up to 100 kg/h

Manufacturer data for a new machine:

GREENMAX Compactor APOLO C100
For All Polystyrene Foam: EPS/XPS/PSP
Screw compression technology produces continuous logs at a ratio of 50:1.
Mechanical Compression Technology, safe, no fumes, lower consumption.
Siemens Control System makes the operation easy and simple.
Famous brand components like SIEMENS, PHOENIX, etc.
CE/UL/CSA standards.
Technical Data
ITEM
A-C100
Total Power Consumption
10.25 KW / 13.75 HP
Dimensions
3780×650×1910 (l/w/h) mm
149×26×75 (l/w/h) in.
Shipping Dimensions
Main part: 2900×760×2220 (l/w/h) mm / 114×30×87 (l/w/h) in.
Output chute: 1310×500×620 (l/w/h) mm / 55×20×24 (l/w/h) in.
Weight
1,500 kg / 3300 lbs
Feed Hopper Door
800×500×1700 (l/w/h) mm / 31×20×67 (l/w/h) in.
EPS Block Dimensions
300×300(w/h) mm / 12×12(w/h) in.
Applicable Material
Polystyrene Foam: EPS/XPS/PSP
Production Capacity
100 kg per hour / 220 lbs per hour
EPS Compression Ratio
50:1
Compressed EPS Density
200-400 kg/m3 / 570-1140 lbs/cubic yard
Standard
CE / UL / CSA
