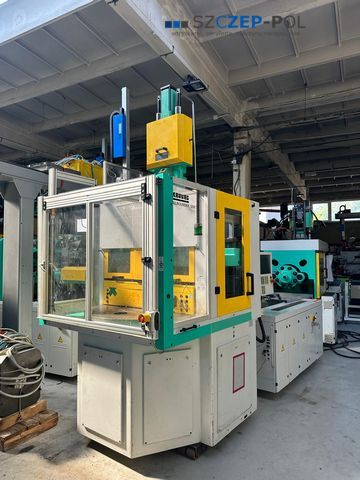

Arburg 1200T 1000-290 injection molding machine - vertical machine with rotary table, 100T, 2012

SZCZEP-POL
Sale of injection molding machines and peripheral equipment

Type:
Arburg 1200T 1000-290 - vertical machine with rotary table
Year of manufacture: 2012

Description:

Injection unit:
Screw diameter: 30 mm
Shot weight: 97 g
Injection pressure: 2500 bar
Shot volume: 106 ccm

Clamping unit:
Clamping force: 100 t
Distance between tie bars: 0x0 mm
Max table platen dimensions: 1200 mm
Ejector: hydraulic
Clamping system: hydraulic

Control:
SELOGICA - touchscreen with option to translate into Polish

Additional equipment:
Vertical machine with rotary table
Euromap 67
Robot interface
Air valve x 6
Hydraulic core pull x 2
Hot runner control x 18
Armored injection unit - bimetal
Servomotor on the injection unit - fast dosing and fast injection
Proportional valve on the injection unit - precise injection
Shut-off nozzle
Primus sensor - cavity pressure control
Rotary table diameter: 1200 mm

Dimensions:
Weight: 7200 kg
Length/Width/Height: 4.36x1.71x3.66 m

Power supply:
Pump/Motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastic processing machines: injection molding machines, peripheral equipment, and machine tools.
All equipment offered by our company is stored in our warehouses in Lodz.
All injection molding machines and peripheral equipment are tested before sale by our service technicians.
It is possible to watch a video of the technical tests of a selected machine or participate in live technical trials at our company in Lodz.
