New-concept vacuum loading system

New-concept vacuum loading… A new vacuum loading system for conveying pellets and regrind from storage to single or multiple blenders is simpler to operate than standard systems and consists of autonomously controlled receivers that are fully 80% shorter than conventional material loaders and receivers. Maguire Products, Inc. will introduce the system at K 2016 (Hall 10, Stand A26).

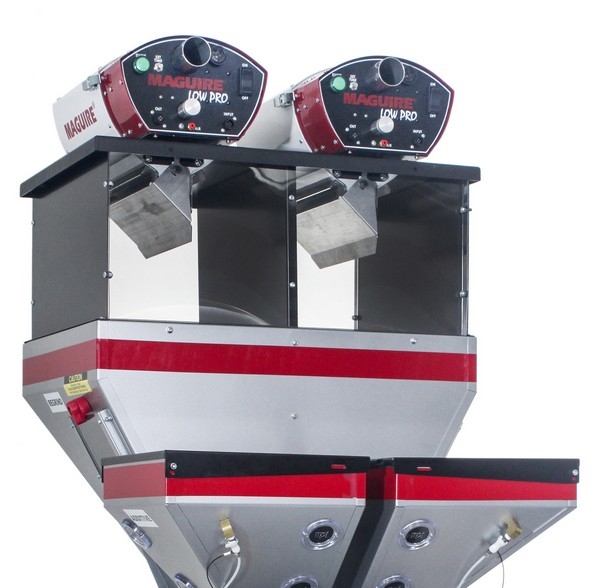

Aptly named LoPro, the low-profile receivers protrude only 200 mm (8 in.) above the lid of a blender, providing a low center of gravity that minimizes potential sway on fast-cycling processing machines. Each receiver is self-controlled, with no central control required. Connection and installation is simple, with plug-and-play cabling and sequential linking of components. Receivers load on a first-in / first-out basis. Vacuum is supplied from a “mini-central” unit mounted on a portable floor stand or on the blender frame and is powered by a single-phase brushless motor that has been used in thousands of installed Maguire GSL vacuum loaders.

The discharge or "dump" flap in the LoPro receiver is 3 to 6 times wider than the flap on traditional upright receivers, making possible a dump time of only 1 to 2 seconds per cycle, depending on material flow properties.

The onboard control has a user-friendly set-time button that permits precise fill-time settings. Sound and visual alarms notify if material is not loading correctly.

Maintenance has also been simplified. All operating components of the LoPro receiver are housed in a removable module that allows the receiver to remain in place, making possible quick, on-the-fly cleaning and maintenance. Modules are interchangeable, allowing production to continue in the event that service is needed. Because access is from the side of the module rather than the top as with conventional units, it is easier to check the system and access the filter. A patented blow-back system provides effective filter cleaning at the end of each cycle, eliminating need for manually cleaning the filter.

"Maguire has designed the LoPro system to be affordable, easy to use, readily installed in existing production facilities, and even adaptable to a third-party vacuum system," said Frank Kavanagh, vice president of sales. "Its simplicity alone will enable more plastics processors to obtain the productivity benefits of an automated loading system. In addition, the LoPro system comes with the same 5-year warranty that backs up every other equipment system made by Maguire."

Utilizing a 1.3 Hp (970 w) single-phase brushless motor, the LoPro system has a conveying capacity of 650 kg (1,300 lb.) per hour over 4 m (12 ft.) and 500 kg (1,000 lb.) per hour over 6 m (20 ft.). Maguire plans to offer larger LoPro receivers and vacuum pumps in the future.
