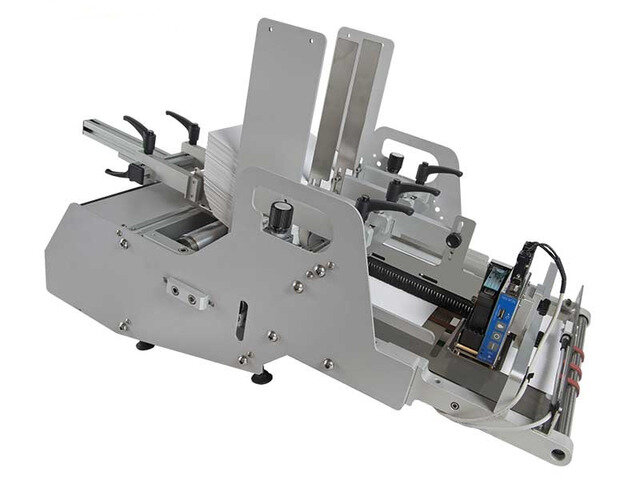

WR 250 mm carton feeder

Friction feeder for sheets, cards, cartons and leaflets with a maximum size of 250 x 300 mm. Thanks to a powerful stepper motor, it can reach speeds of up to 70 m/min.

The feed is driven by a counter-rotating rubber roller with micro-adjustment on the left and right sides. This solution makes the feeder highly versatile. The 300 mm high magazine ensures high throughput and continuous operation.

LCD display

The feeder is controlled by a microprocessor that uses an LCD display keypad with two 20-character lines and 7 function keys to communicate with the user. This allows all operating parameters to be set, such as continuous feeding or the number of copies on demand. The feeding speed and print delay can also be programmed. The controller can store up to 40 different operating settings.

Technical data:
Product width: min. 60 - max. 250 mm
Product length: min. 60 - max. 300 mm
Product thickness: 0.2 - 10 mm
Max. speed: 70 m/min
Drive: stepper motor
Power supply: 230 Vac - 50 Hz
Power: 300 W
Dimensions: 891 x 413 x 490 (H)
Weight: 35 kg
