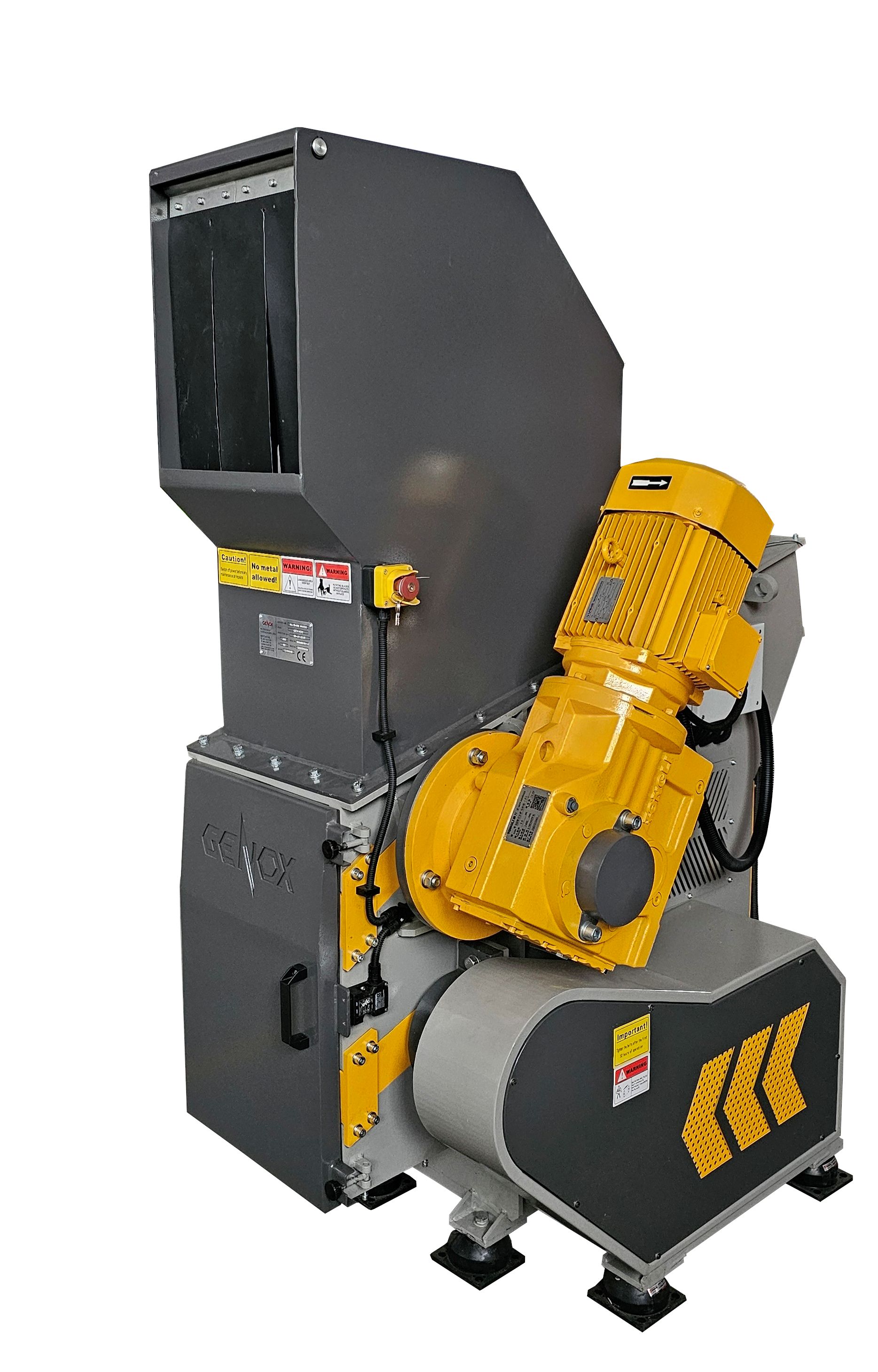

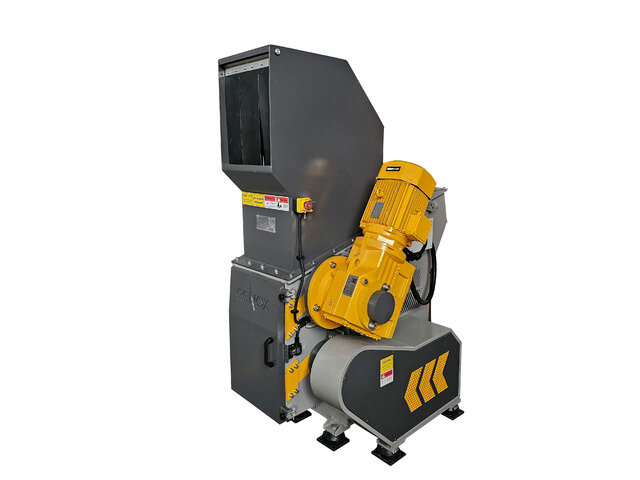

The GCV series machine is a modern unit combining the functions of preliminary shredding and final granulation of plastics. It enables processing of various types of plastics and other materials in a single process.
The upper part of the machine is responsible for preliminary shredding - the material is fed onto rotating knives that cut it precisely. A special system is also used to support efficient feeding of the material into the machine.
The lower part is the grinding zone, where the rotor design and material feeding method can be adapted to the type of material, its properties, expected throughput and final regrind size. After processing, the material does not require additional transport between machines. The machine has a compact design, takes up little space and offers a very good price-to-performance ratio.
Crusher parameters:
Crusher motor power: 11 kW
Rotor knives: 13 + 2
Fixed knives: 4
Granulator parameters:
Granulator motor power: 7.5 kW
Rotor knives: 6
Fixed knives: 2
Dimensions: 1009 x 1476 x 1886
Weight: 1110 kg
Crushing chamber: 400 x 550 mm
